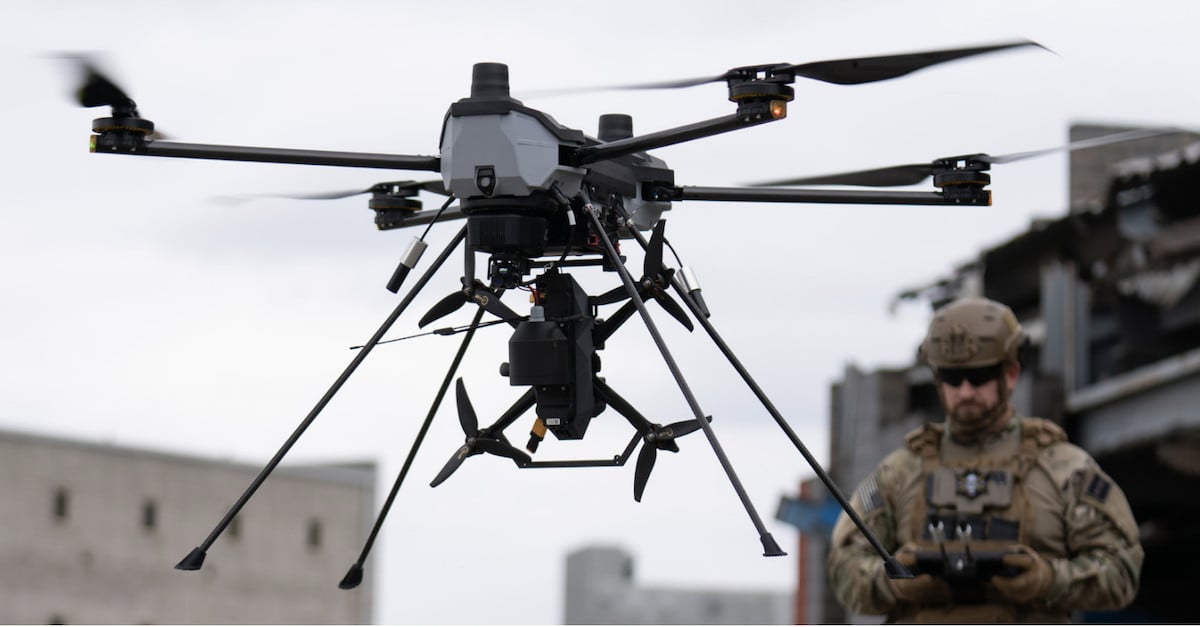

The PDW AM-FPV is a compact, mission-flexible drone platform engineered for high-threat and congested operational theaters. Blending the agility of an FPV system with the payload endurance typically reserved for larger platforms, it enables rapid deployment and lethal precision in complex environments. With quick-swap arm configurations (5", 7", and 10") and a universal mount for ISR and kinetic payloads, the AM-FPV adapts seamlessly from reconnaissance to direct engagement tasks. Fully packable and combat-ready in under two minutes, it supports close-quarters and extended-range missions without compromising tactical speed.
Purpose-built for harsh and heavily contested domains, the AM-FPV excels in environments where survivability, field modularity, and operational tempo are decisive. Integrated with PDW’s C100 system, it enhances strike reach and multiplies situational awareness through distributed command control. Developed by drone racing engineers and U.S. SOF veterans, this platform offers scalable lethality, hardened resilience, and precise targeting capability—delivering reliable force multiplication in the face of evolving modern warfare.
| Dimensions: |
AM-5: 5" AM-7: 7" AM-10: 10" |

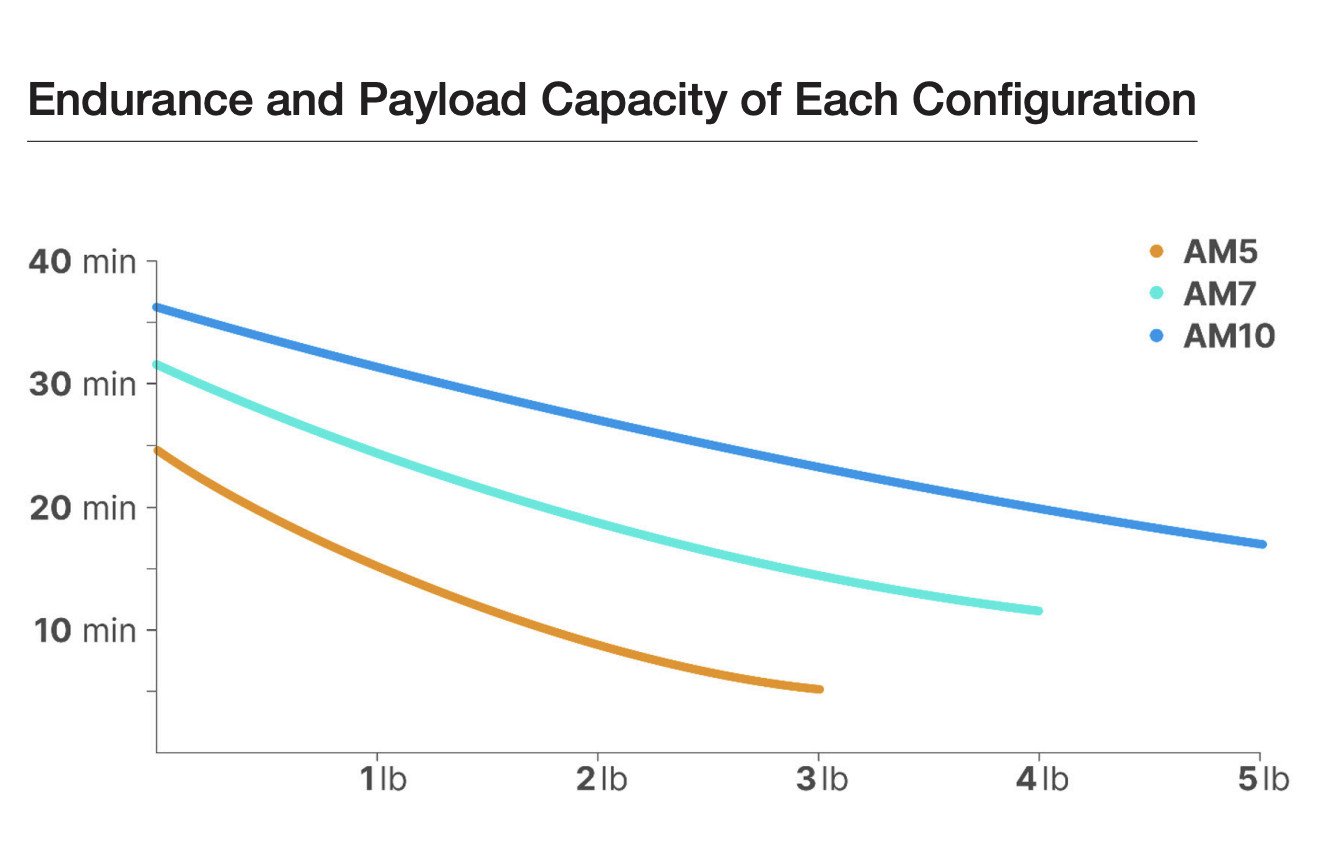

| Endurance: |
AM-5: 23min slick / 11min 3lb AM-7: 32min slick / 12min 4lb payload AM-10: 35min slick / 18min 5lb payload |
| Max Payload Capacity: |
AM-5 3lb (1.3kg) AM-7 4lb (1.8kg) AM-10 5lb (2.2kg) |
| Range: |
20+km point to point 30+km with C100 C2 relay |
| Payloads: | Universal electromechanical payload interface |
| Analog Camera: |
Sony 1/2.8” CMOS HFOV 114° Min. Illumination >0.003 Lux |
| EO/IR Illuminator: |
700 lumen 5700K (Day) / 760mW/sr 850nm (IR) Adjustable brightness (low, medium, full) |
| Radio: |
Quad-band multi-frequency C2 transceivers Band switching / Frequency hopping |
