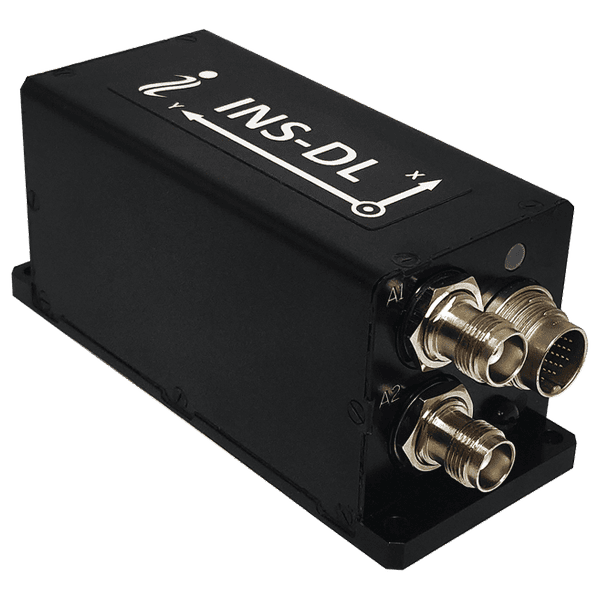

INS-DL
The INS-DL is a low-cost dual-antenna GNSS-INS featuring multi-constellation tracking and advanced industrial-grade 3-axis MEMS sensors with extremely precise heading.
The sensor features full temperature calibration and embedded sensor fusion algorithms for the different dynamic motions of land vehicles, naval vessels, helicopters and gimbals, and can be fitted with an external magnetic compass. It is sealed to IP67 standards, and designed with environmental protection to MIL-STD-810G/DO-160E.
The INS-DL provides heading accuracy of 0.08°, RTK position accuracy of 1cm and static/dynamic pitch & roll accuracy of 0.05°/0.1°. It is available in enclosed or OEM board-level versions.
Specifications:| Heading Accuracy | 0.2° (2m baseline) / 0.4° (1m baseline) |
| Position Accuracy | 1cm (RTK), 60cm (SBAS) |
| Pitch & Roll Accuracy | 0.04° dynamic, 0.08° static |
| GNSS Constellations | BDS, GAL, GLO, GPS, QZSS |
| Corrections | PPK, RTK, SBAS |

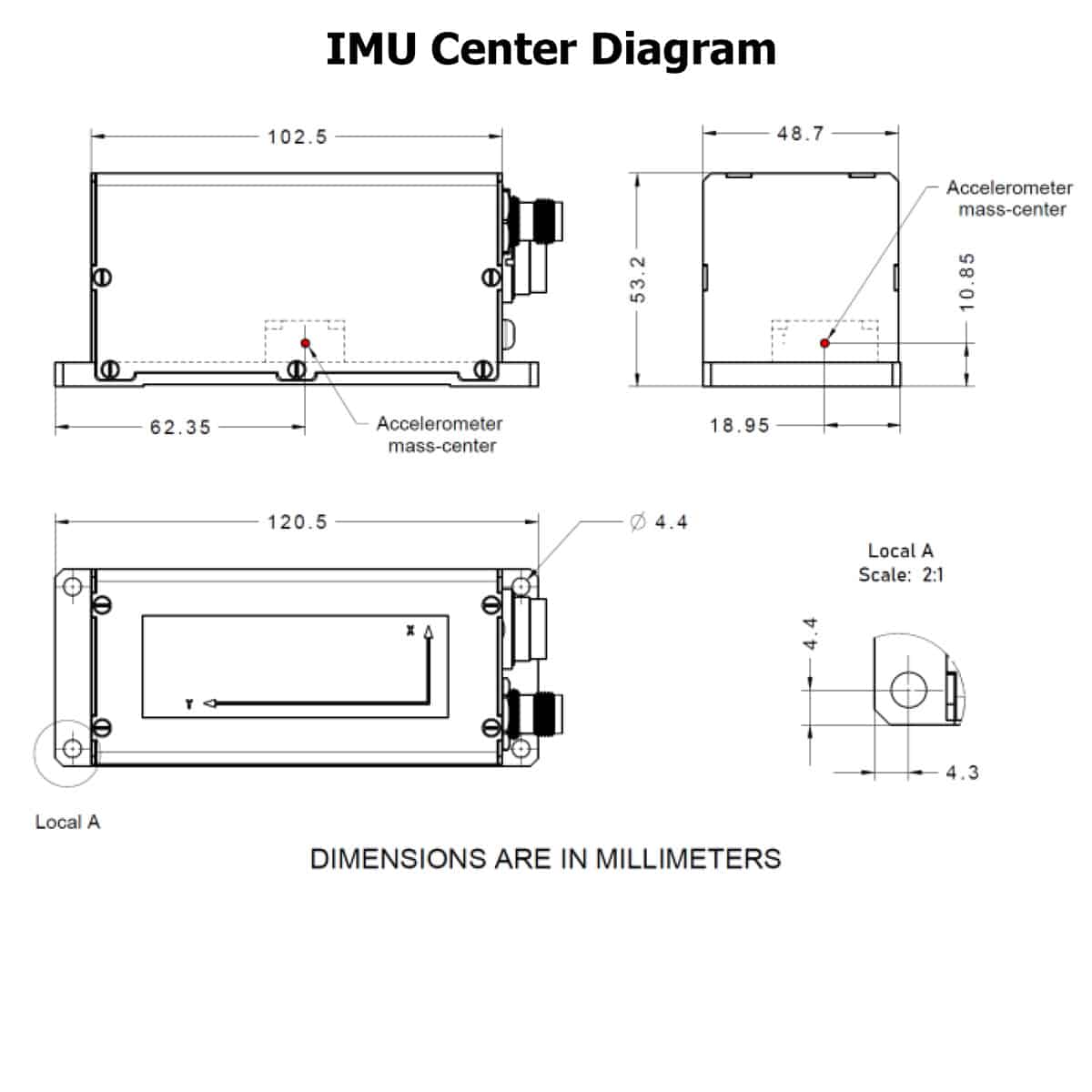

| Type of IMU | MEMS, Industrial-grade |
| Magnetometer | External Magnetic Compass (optional) |
| Other Features | Affordable price, Industrial Grade IMU |

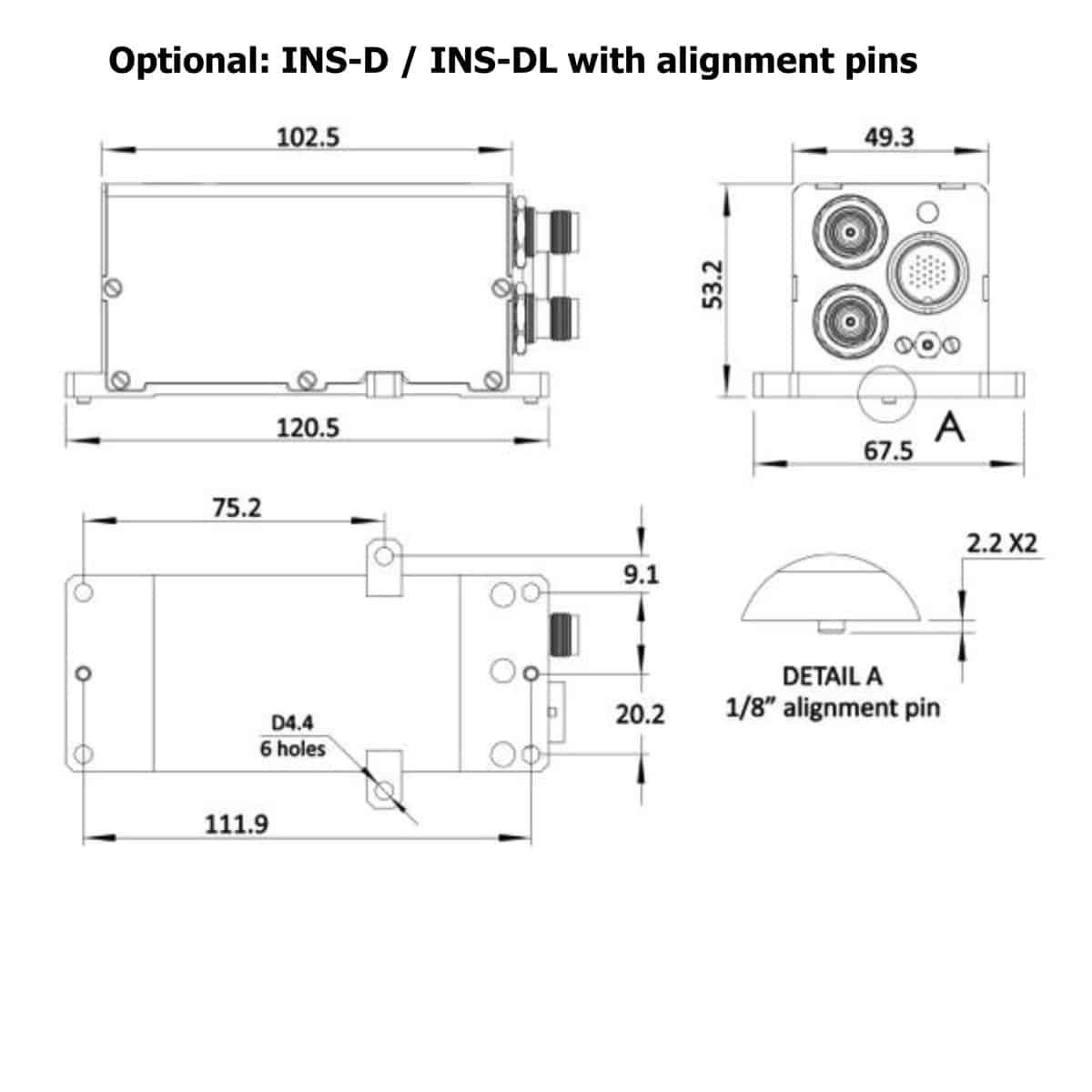

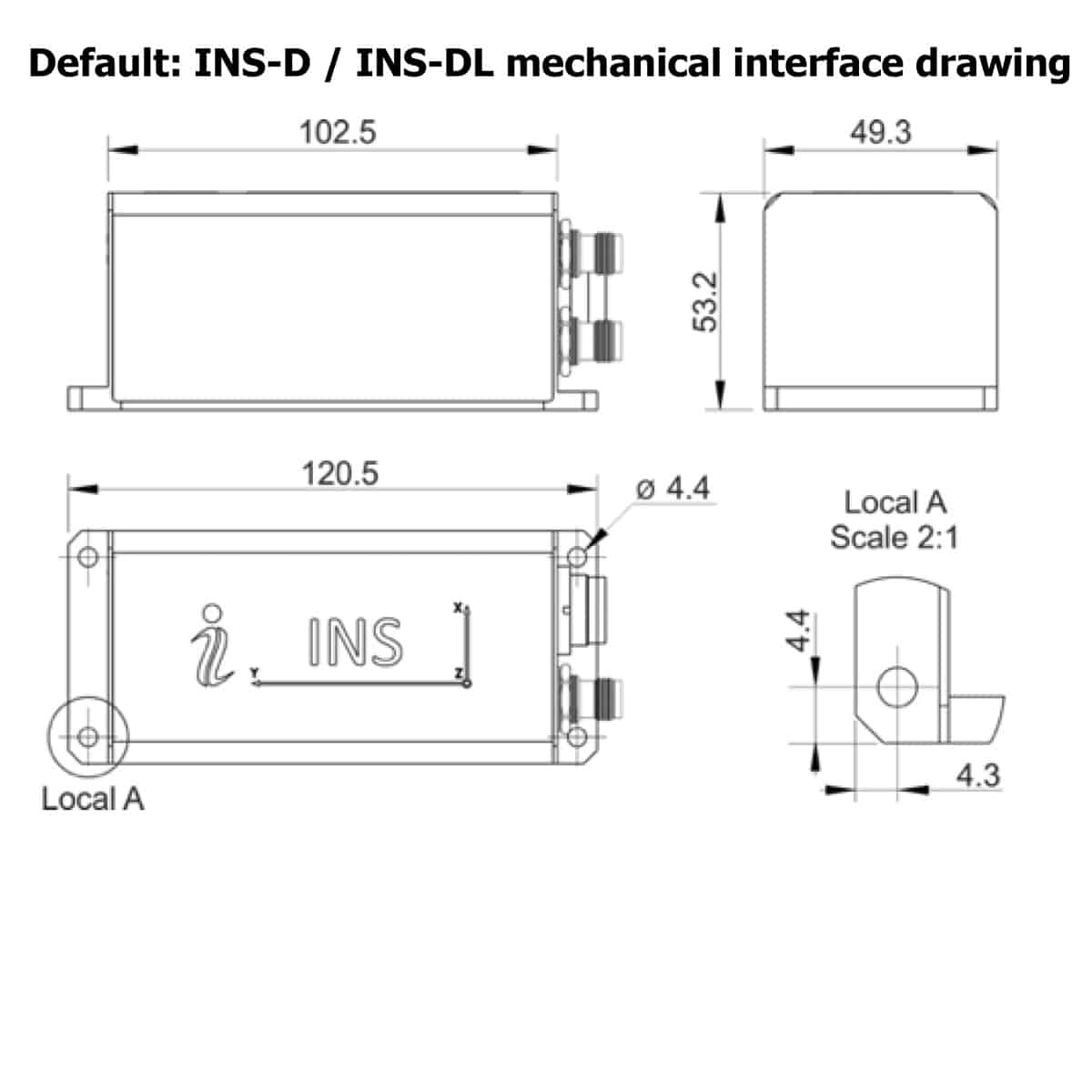

| Size (mm) | 120.5 x 53.2 x 49.3 |
| Weight (gram) | 320 |
| Applications | Antenna Pointing; Low Cost Position and Velocity; Industrial Navigation |
