ANELLO X3 IMU

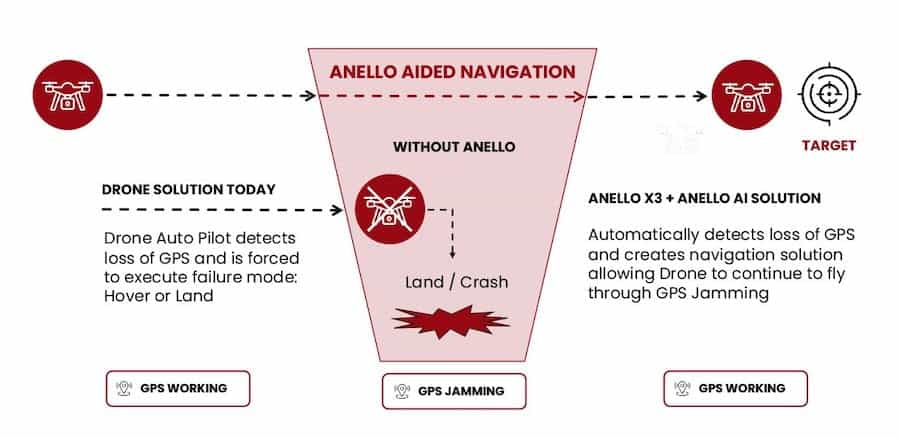

The ANELLO X3 is the world’s smallest and lightest three-axis optical gyroscope IMU in its performance class, utilizing ANELLO's advanced SiPhOGTM (Silicon Photonics Optical Gyroscope) technology and advanced AI sensor fusion algorithms to deliver powerful navigation capabilities for military drones and robotics operating under GPS-denied conditions such as jamming and spoofing attacks.

The resilient IMU incorporates three separate SiPhOGTM units, each with its own independent six-axis redundant IMU sensor, CPU and power subsystem, and delivers exceptional low-drift and low-noise performance in highly challenging and dynamic environments. It provides RS-422 or UART interfaces for easy integration into a range of systems.

3 axis optical gyroscope IMU
Dimensions: 51 x 51 x 44.5 mm (2 x 2 x 1.75”)
Weight: 182g (0.4 lbs)
Power: 4-24 VDC, <5W
Gyro Range: +/- 200°/s
Gyro Bias Instability: < 0.5°/hr
ARW: < 0.05°/√hr
Accel Range: 8g
Accel Bias Instability: 20μg
VRW: 0.03 m/s/√hr
