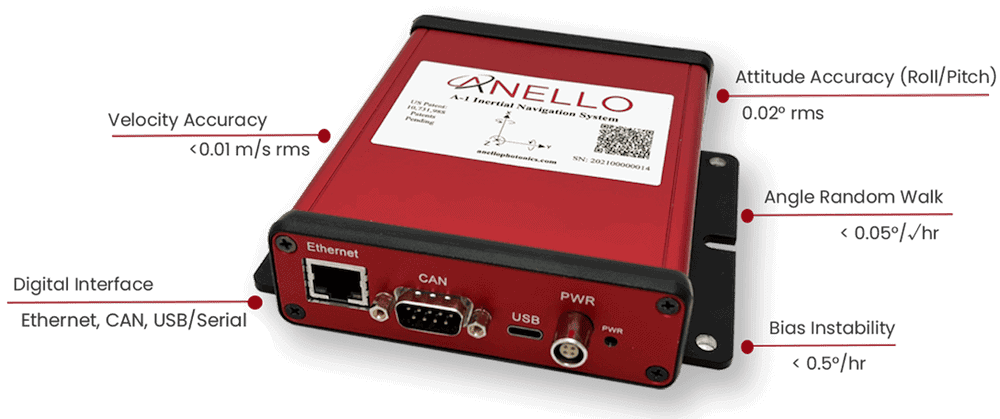

ANELLO GNSS-INS Evaluation Kit

The GNSS-INS evaluation kit (EVK) allows developers and system integrators to explore the possibilities of integrating ANELLO's advanced silicon photonic inertial technology into their designs. Providing sustained centimeter-level accuracy in conditions where more expensive reference-grade systems degrade, including under full GNSS signal loss, the kit is ideal for demanding military and defense applications.

The kit provides everything you need to get started, including an advanced inertial navigation system, two dual band GNSS antennas and all required cables, and offers Ethernet, CAN, USB and serial interfaces for easy integration.

ANELLO GNSS-INS Evaluation Kit
Dimensions: 4.2 x 1.5 x 5”
Weight: 1 lbs
Power: 8-30 VDC, 4W typical
Gyro Range: 200°/s
Gyro Bias Instability: < 0.5°/hr
ARW: < 0.05°/√hr
Accel Range: 4g
Accel Bias Instability: 20μg
VRW: 0.03 m/s/√hr
Positioning Accuracy: SPS: 1.2 m cep
RTK: 0.02 m cep
60s GNSS Outage: < 1.0 m RMS
Velocity Accuracy: 0.01 m/s RMS
Heading Accuracy: 0.2o RMS
Pitch/Roll Accuracy: 0.02o RMS
GNSS Signals: L1 C/A, L2C, L1OF, L2OF, B1I, B2I, E1, E5b and SBAS
