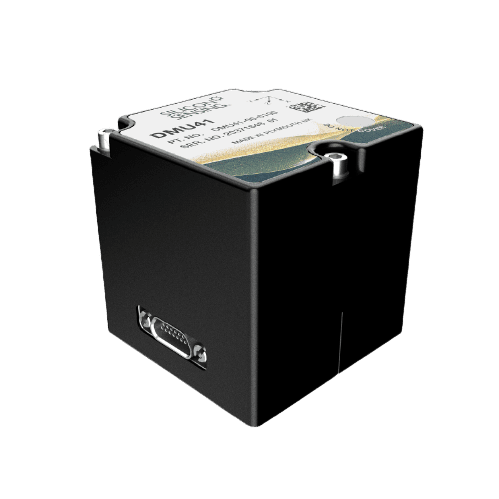

DMU41 MEMS IMU
The ITAR-free DMU41 is our highest-performing MEMS IMU, providing tactical-grade performance with a more than 40% reduction in SWaP (size, weight and power) characteristics compared to its predecessor. The compact nine degree-of-freedom unit features three inductive and three piezoelectric resonating ring gyroscopes, six capacitive accelerometers and three magnetometers.
The DMU41 provides ultra-precise motion sensing for a wide variety of military applications involving stabilisation, navigation, precision mapping and more. The unit can output data at rates of up to 2 kHz, and interface options include RS422/485, SPI and CAN.
| Dimensions | 50 x 50 x 50 mm |
| Weight | 200g |
| Dynamic Range | ±490°/s, ±10g |
| Bias Instability | 0.1°/hr, 0.015mg |
| Bias over Temperature | ±7°/hr, ±1.7mg |
| Current Consumption | 125 mA @ 12V |
| Baud Rate | 460800 baud |
