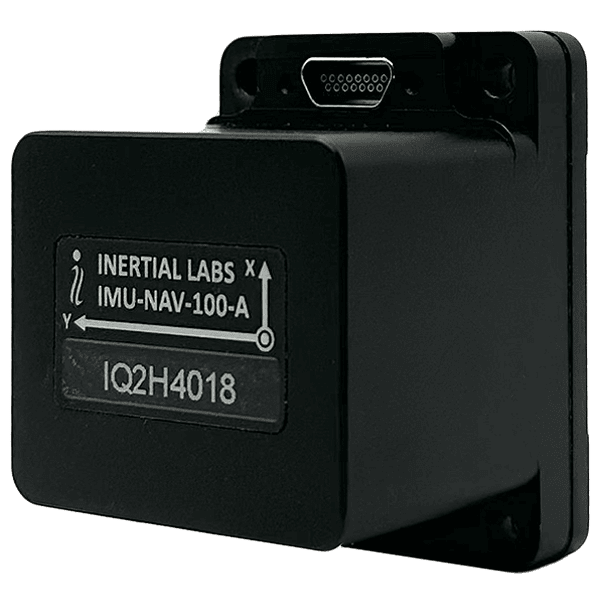

The IMU-NAV-100 is a low-SWaP (size, weight and power) IMU based on state-of-the-art MEMS sensor technologies, providing three-axis linear accelerations and angular rates as well as pitch and roll data with very low noise and high reliability.
Fully calibrated, temperature compensated, and mathematically aligned to an orthogonal coordinate system, the IMU-NAV-100 delivers highly accurate outputs in both static and dynamic conditions.
Featuring continuous Built-in Test (BIT), configurable communications protocols, electromagnetic interference (EMI) protection, and flexible input power requirements, the unit is ideal for land vehicles and naval vessels, gimbals and antennas, platform orientation and stabilization, and more. It is available in two performance variants to suit a range of requirements.
Specifications:
| IMU-NAV-100 Tactical A | IMU-NAV-100 Tactical S | |

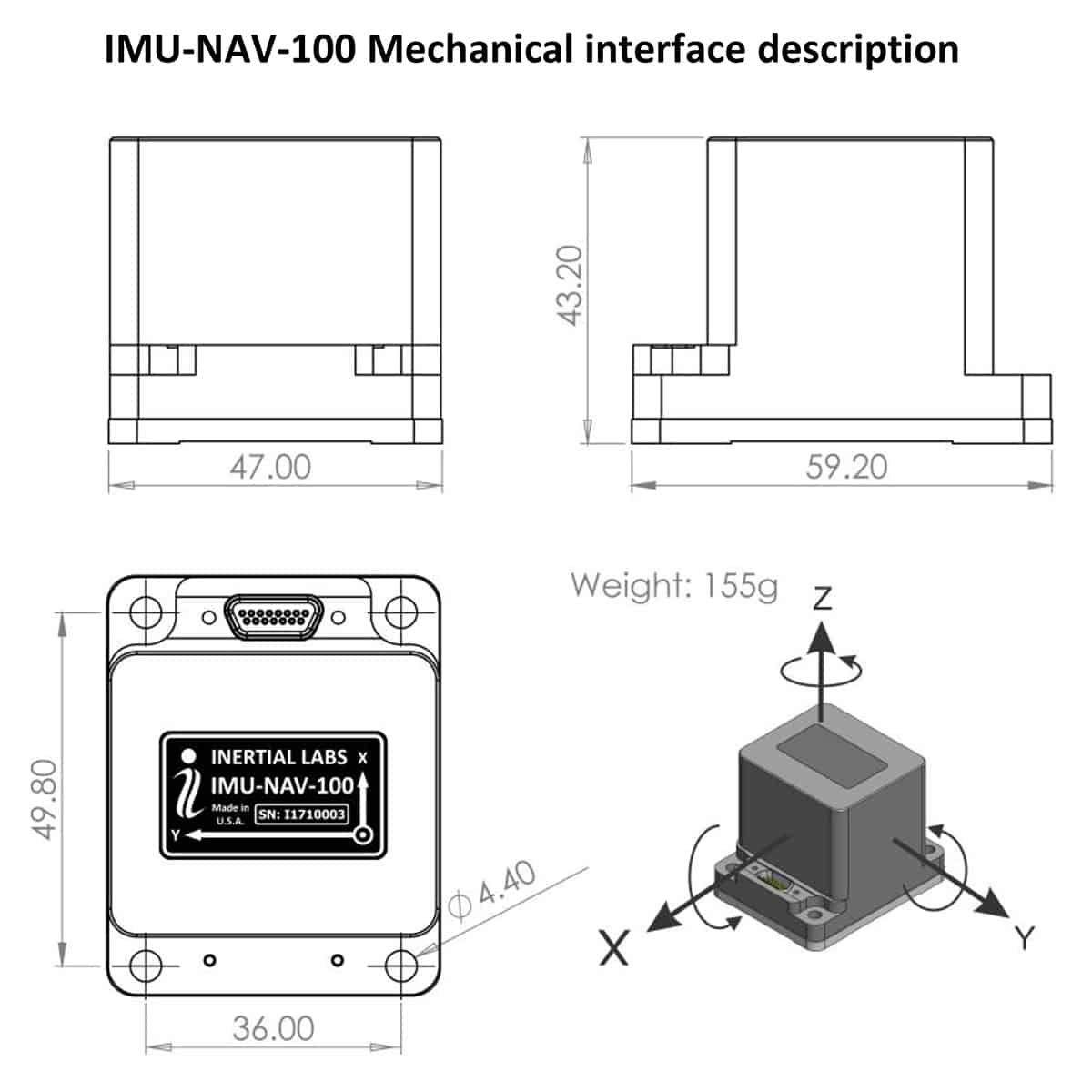

| Size | 59.2 x 48.2 x 48.2 mm | 59.2 x 48.2 x 48.2 mm |
| Weight | 155 g | 155 g |
| Gyroscope Bias In-Run Stability | 0.5 deg/hr | 1 deg/hr |
| Gyroscope Noise ARW | 0.1 deg/√hr | 0.04 deg/√hr |
| Accelerometer Bias in-run Stability | 0.003 mg | 0.003 mg |
| Accelerometer Noise VRW | 0.008 m/sec/√hr | 0.008 m/sec/√hr |
| Pitch & Roll Accuracy |
0.03 deg static 0.06 deg dynamic |
0.03 deg static 0.06 deg dynamic |
| Power Consumption | 0.8W @ 5V | 0.8W @ 5V |
| Operating Temperature | -40 to +85 deg C | -40 to +85 deg C |
