IMU-FI-200C
The sensor is fully calibrated and temperature compensated, and has been thoroughly tested to perform under significant variations in temperature, high vibration, and shock. It also features continuous built-in test (BIT) capabilities, configurable communications protocols, and electromagnetic interference (EMI)
protection.
Highly suited to both motionless and high dynamics applications, the IMU-FI-200C is ideal for UAV and UUV navigation and control, platform and antenna stabilization, and incorporation into AHRS and INS.
The Inertial Labs IMU-FI-200C models were designed for applications, like:
- Antenna and Line of Sight Stabilization Systems
- Passengers trains acceleration / deceleration and jerking systems
- Motion Reference Units (MRU)
- Motion Control Sensors (MCS)
- Gimbals, EOC/IR, platforms orientation and stabilization
- GPS-Aided Inertial Navigation Systems (INS)
- Attitude and Heading Reference Systems (AHRS)
- Land vehicles navigation and motion analysis
- Buoy or Racing Boat Motion Monitoring
- UAV & AUV/ROV navigation and control

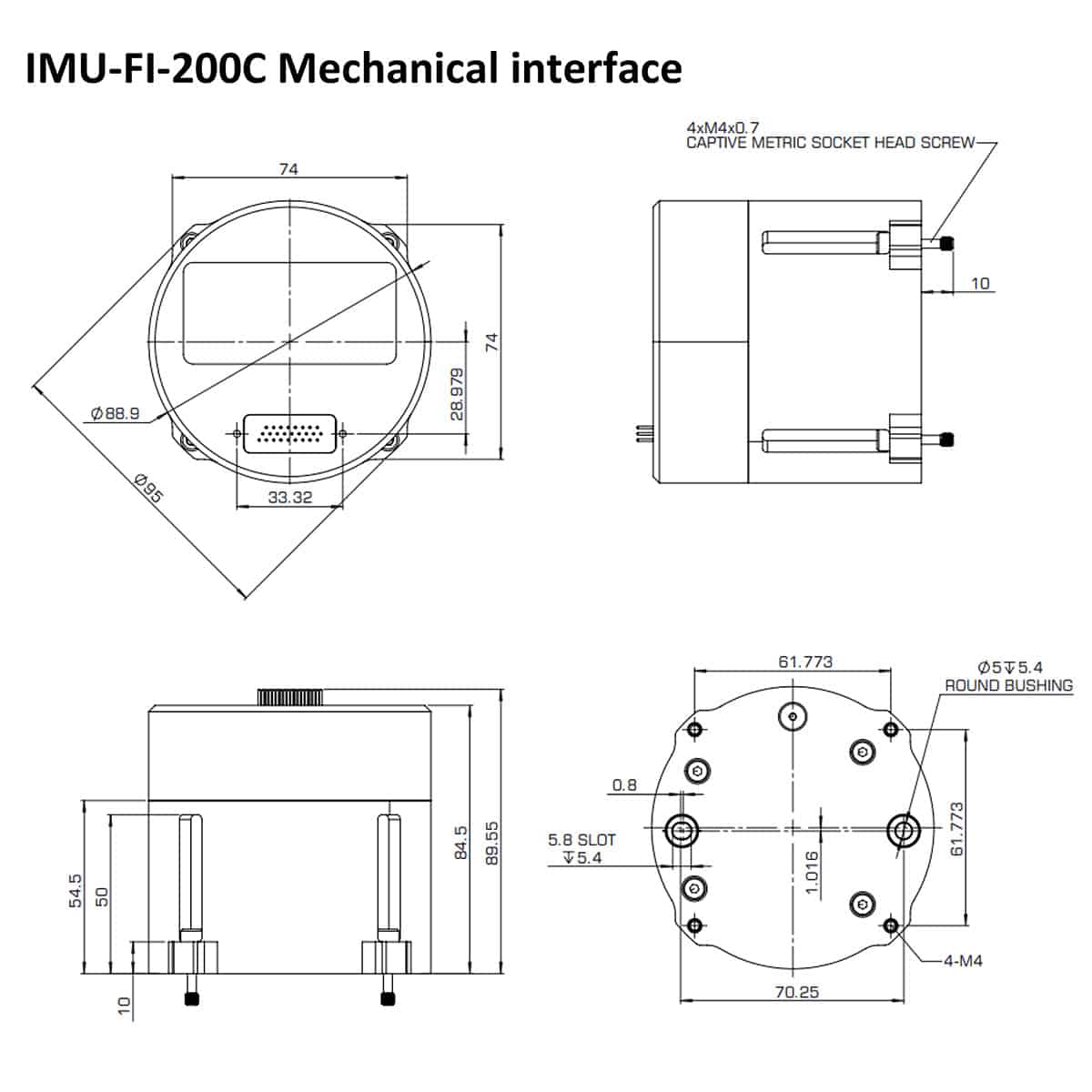

| Dimensions (D x H) | 88.9 x 84.5 mm |
| Weight | 790g |
| Power Consumption | 5.5W @ 5V |
| Gyroscope Bias Repeatability | 0.5 deg/hr |
| Gyroscope ARW | 0.025 deg/√hr typical |
| Accelerometer Bias In-run Stability | 0.015 mg |
| Accelerometer VRW | 0.015 m/sec/√hr typical |
| Operating temperature | -40 – +71 deg C |
