How GuRu Wireless power beaming works
With a unique combination of beam shaping and smart lensing, GuRu’s wireless energy transfer technology has overcome the limitations of previous methods to provide in-flight recharging for mission-critical drones.

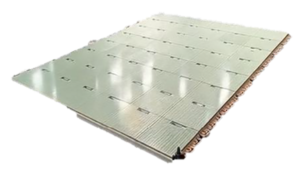

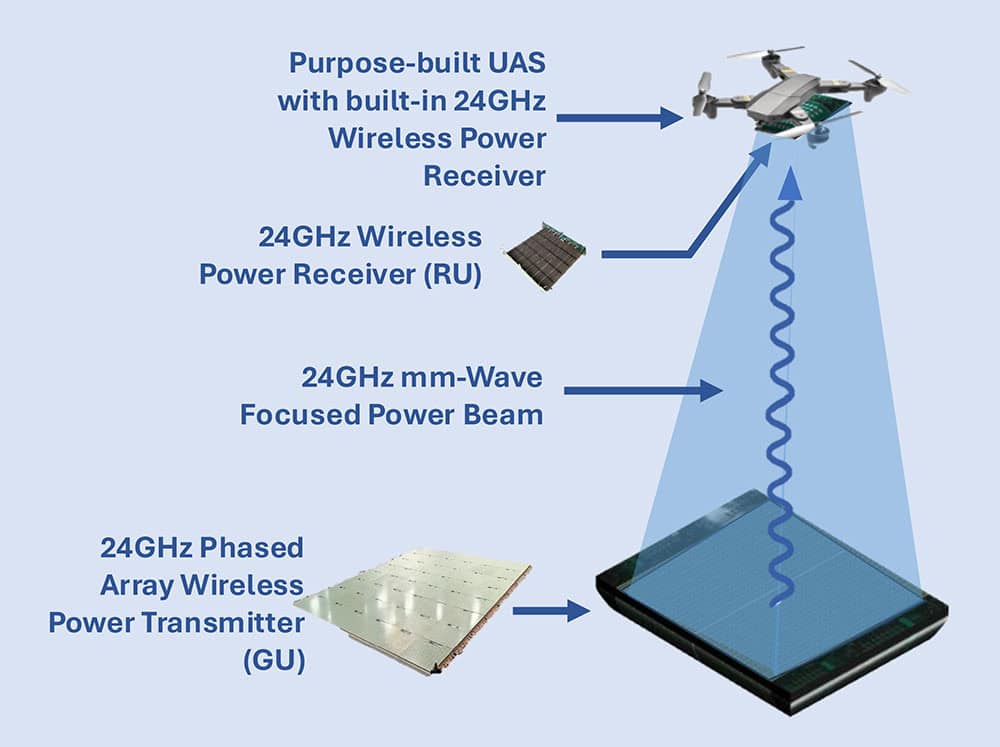

GuRu’s system uses a ground-based Generation Unit (transmitter) built around a software-steered 24GHz phased array to convert electrical power into tightly focused RF beams.
Using digital beamforming and proprietary GuRu RF Lensing®, the system forms, steers, and concentrates energy in real time to deliver power efficiently at range while suppressing sidelobes. A compact onboard Recovery Unit (receiver) locks onto the beam, converts RF energy into regulated DC power, and feeds the sUAS battery or power management system. Closed-loop tracking maintains alignment with moving targets, and the system can time-share or multiplex beams across multiple receivers to to track and recharge multiple targets.

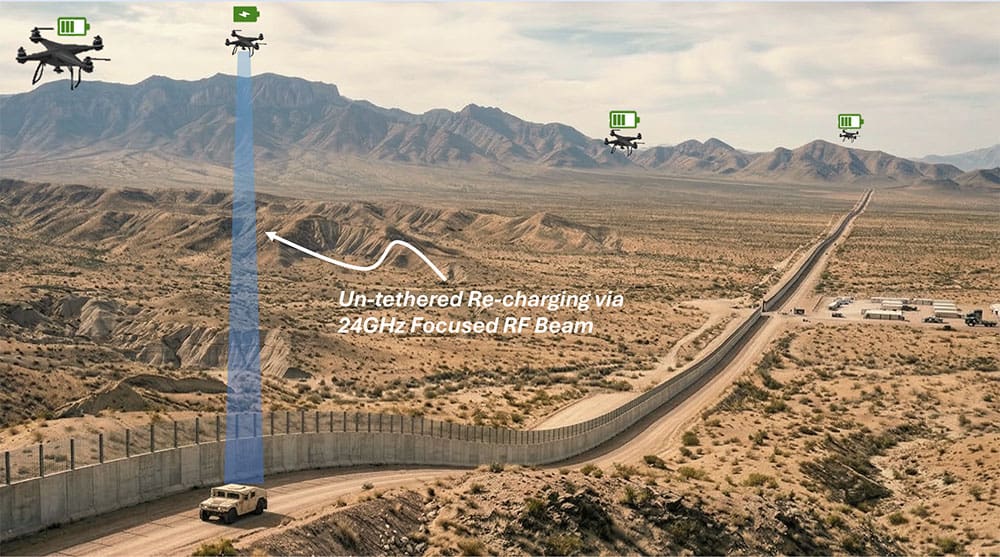

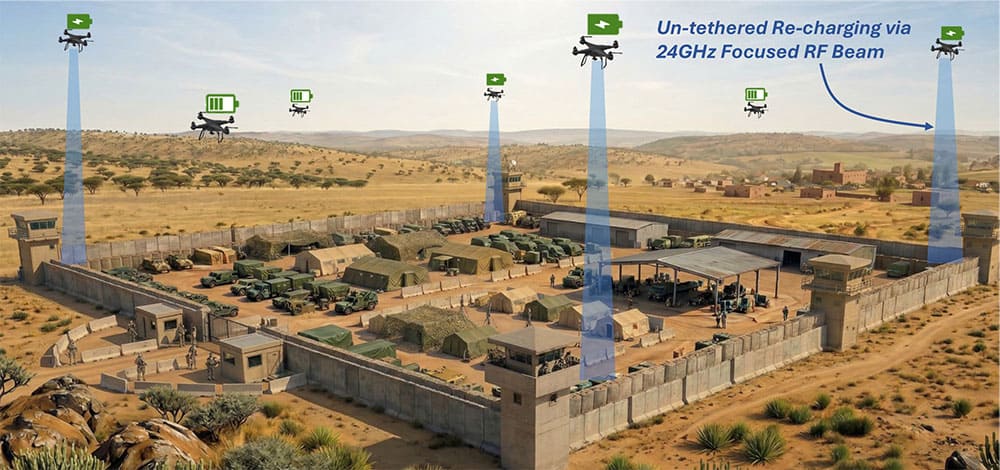

This capability is enabled by GuRu’s scalable Long Range Wireless Power Beaming (LRWPB) platform, which integrates power- and weight-efficient receivers into purpose-built aerial platforms. The result is persistent flight operation for applications including border security, base protection, convoy operations, maritime surveillance, and critical infrastructure monitoring.
The technology has currently achieved TRL 6, and has been successfully demonstrated to the US Army and Marine Corps, achieving over 96 hours of continuous drone flight with recharging at 200 feet.
