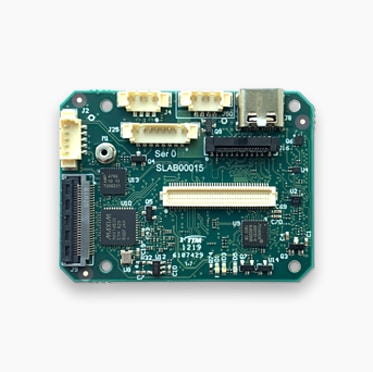

4000-OEM Embedded Video Processing Board

Powerful tactical video processor with 4k encoding and streaming

The 4000-OEM is SightLine's most powerful video processing solution, delivering Full HD performance and 4K encoding in a low-SWaP package. Visit Website Contact
Saved
Save
4000-OEM Embedded Video Processing Board

The 4000-OEM’s multiple digital video inputs include: parallel digital compatibility with any 3000-OEM input adapter board, MIPI, and USB-3. Multiple video outputs include: ethernet streaming H.264 and H.265, HDMI and HDSDI. Dual-channel processing to 4K @ 30 fps with encoding only. SightLine’s 4000-OEM is built on Qualcomm Snapdragon processor. Multiple serial ports and GPIO for implementing system interfaces. Onboard recording to μSD card. Small SWaP at 50.5x38mm weighing 13 grams and 5W power. Both OEM and SOM integration options available.

The 4000-OEM supports a wide range of cameras, including:

  • Sony FCB-EH6xxx, EH31xx, EV7xxx
  • Hitachi DI-SC120R
  • Tamron 10x
  • Airborne 720p GS
  • FLIR Tau, Quark, Boson
  • DRS Tamarisk
  • HDMI
  • HDSDI
  • Camera Link
  • MPIP
  • USB-3

Specifications:

Size 50.5 x 38 mm
Weight 13 g
Power Consumption 5W typical
Video Output Rates 2x 1080p @30 fps with full SW
4K @30 fps with encoding only
4K @ 15-30 fps other SW functions
Video Inputs 3x digital, 2x analog (with adapter boards)
Video Outputs Dual-stream H.264/H.265 IP video
HDMI
HDSDI (with HDMI-HDSDI-output board)
