MAXL-OL-2070 MEMS Accelerometer
MAXL-OL-2070 open loop MEMS accelerometer’s one-year bias repeatability of 5 mg and one-year scale factor repeatability of 600 ppm enable excellent measurement accuracy for inertial navigation and vibration sensing applications.
A specially developed ASIC utilized in MAXL-OL-2070 produces a differential analog voltage output proportional to acceleration along with a temperature–proportional voltage output that can be used for system needs. The output voltage range is ± 1.2 V.

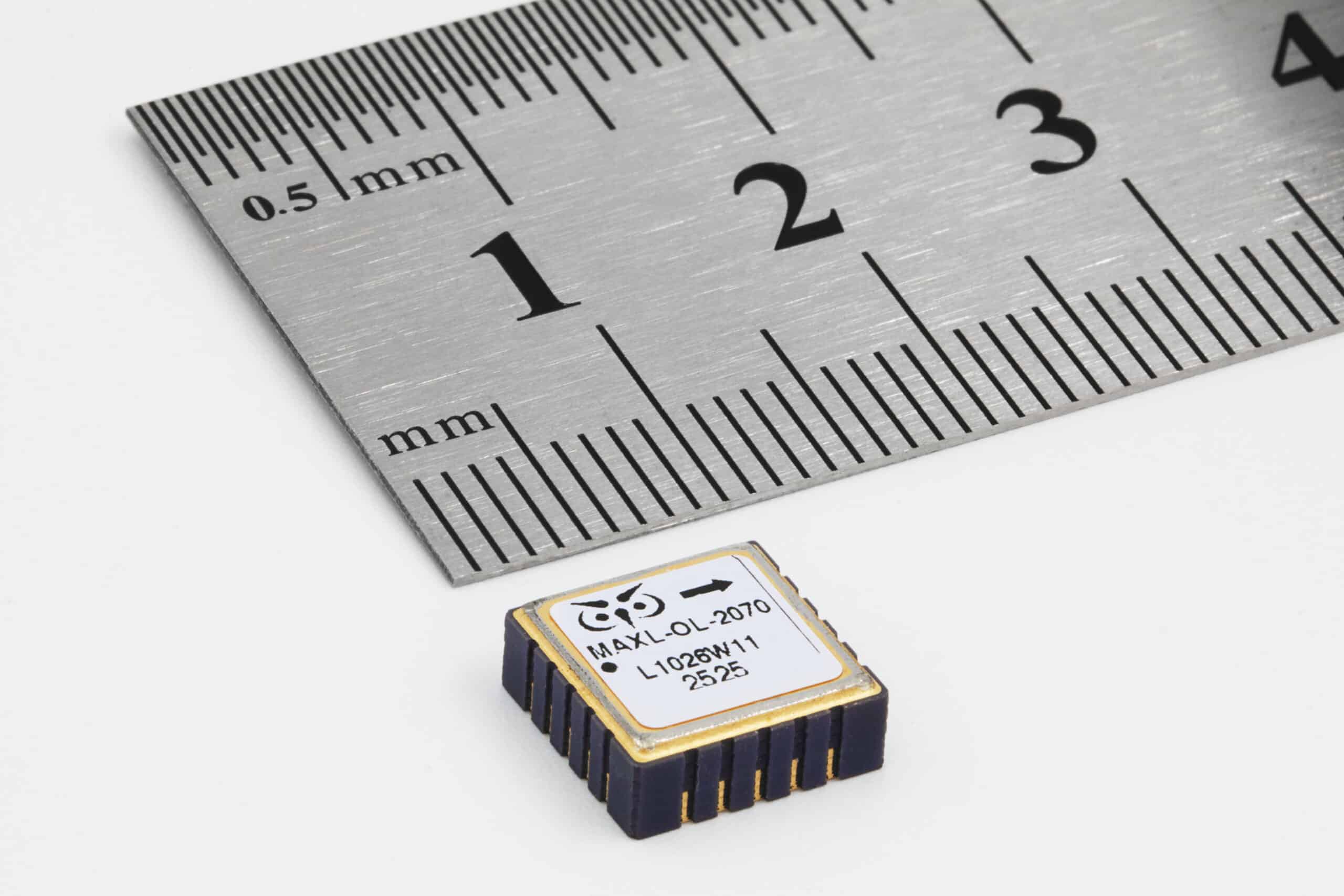

A highly advanced device, the MAXL-OL-2070 provides a sensing range of ± 70 g, it operates from a single power supply voltage of 3.3 V with <13 mA current consumption. The sensor is packaged in a hermetically sealed LCC20 ceramic package.
Key Parameters:- Sensing range: ±70 g
- Equivalent Noise density in band: 5 µg/√Hz (max)
- Bias repeatability: 5 mg (1σ)
- Scale factor repeatability: 600 ppm (1σ)
- Non linearity: 0.7% of input acceleration (1σ)
