MAXL-OL-2020C MEMS Accelerometer
MAXL-OL-2020C Export Control Free open loop MEMS accelerometer’s one year bias repeatability of 2 mg (1σ) and one year scale factor repeatability of 600 ppm (1σ) enable excellent measurement accuracy for tilt sensing and seismic detection applications.
A specially developed ASIC utilized in MAXL-OL-2020C produces a differential analog voltage output proportional to acceleration along with a temperature – proportional voltage output that can be used for system needs. The output voltage range is ± 1.2 V.

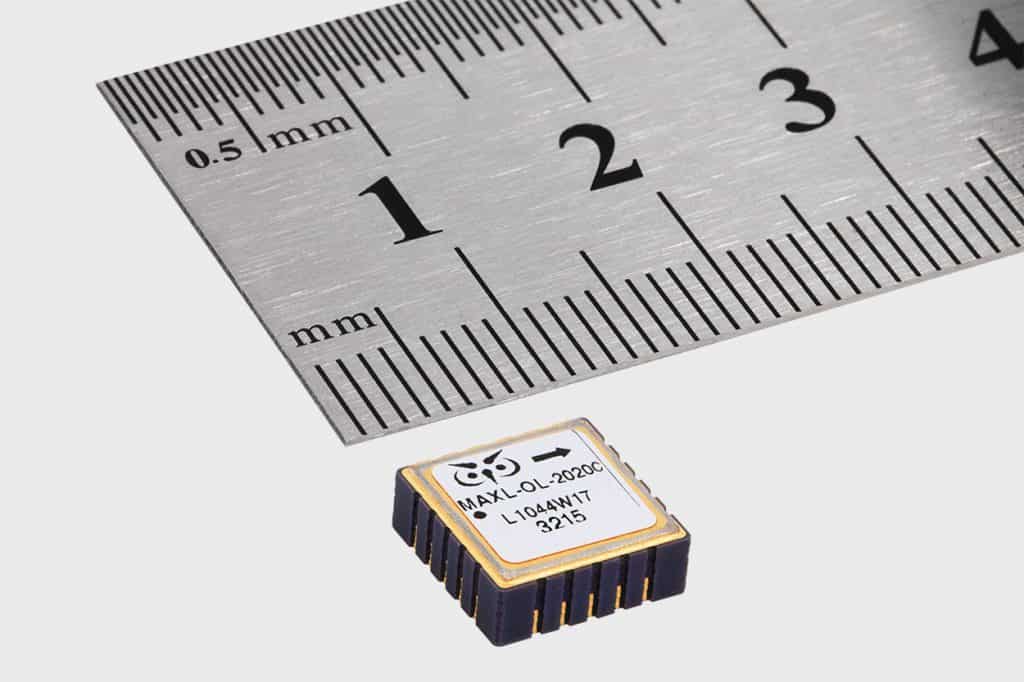

A highly advanced device, the MAXL-OL-2020C provides a sensing range of ± 20 g, it operates from a single power supply voltage of 3.3 V with <13 mA current consumption. The sensor is packaged in a hermetically sealed LCC20 ceramic package.
Key Parameters:- Sensing range: ±20 g
- Equivalent Noise density in band: 4 µg/√Hz (max)
- Bias repeatability: 6 mg (max), 2mg (1σ)
- Scale factor repeatability: 1800 ppm (max), 600 ppm (1σ)
- Non linearity: 0.7% of input acceleration (1σ)
- Operating temperature range tested @ -10⁰C to +60⁰C
