MAXL-OL-2010 MEMS Accelerometer

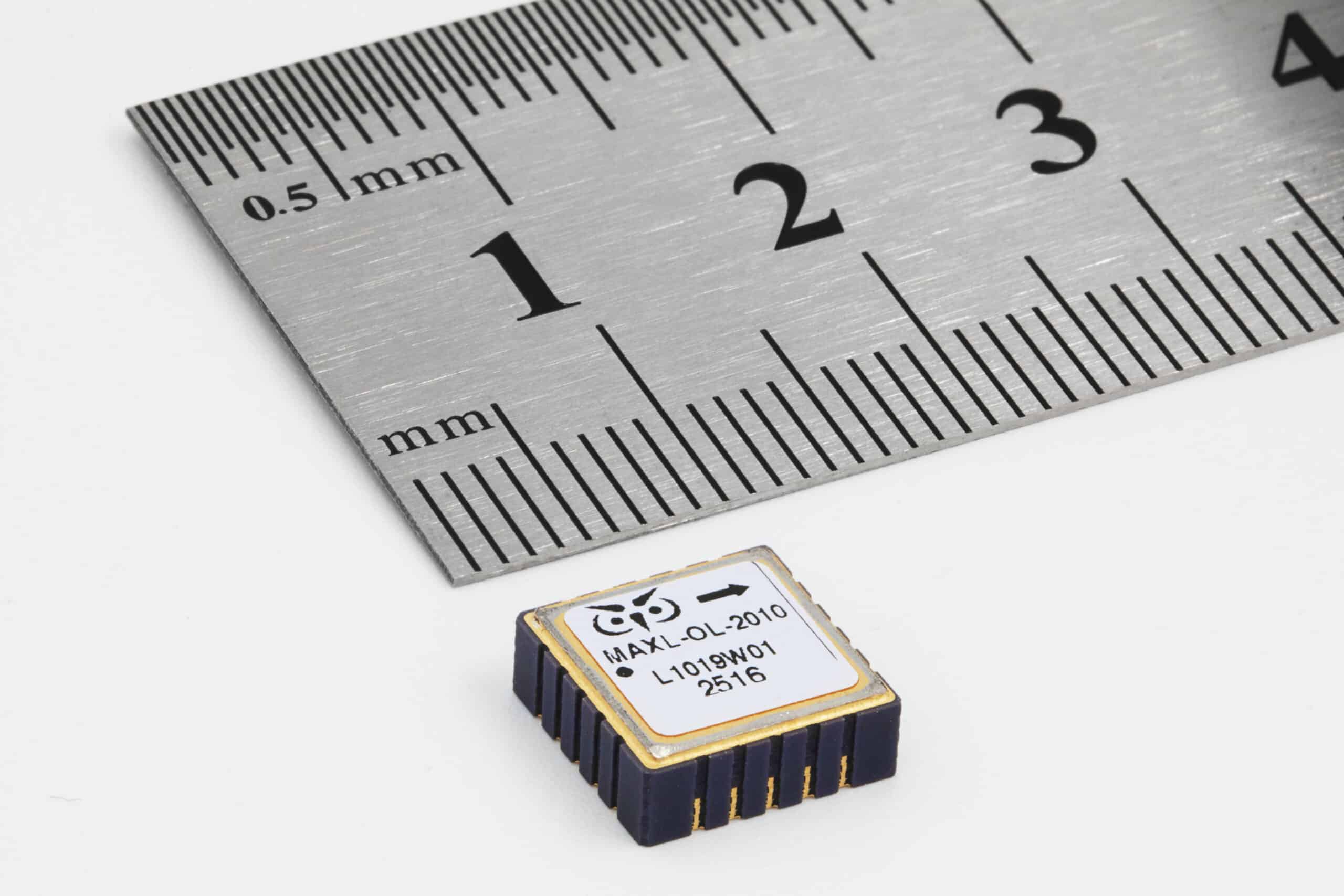

MAXL-OL-2010 open loop MEMS accelerometer’s one-year bias repeatability of 1.5 mg and one-year scale factor repeatability of 600 ppm enables excellent measurement accuracy for tilt inertial navigation applications. A specially developed ASIC utilized in MAXL-OL-2010 produces a differential analog voltage output proportional to acceleration along with a temperature–proportional voltage output that can be used for system needs. The output voltage range is ± 1.2 V. A highly advanced device, the MAXL-OL-2010 provides a sensing range of ± 10 g, it operates from a single power supply voltage of 3.3 V with <13 mA current consumption. The sensor is packaged in a hermetically sealed LCC20 ceramic package.
Key Parameters:- Sensing range: ±10 g
- Equivalent Noise density in band: 2.2 µg/√Hz (max)
- Bias repeatability: 1.5 mg (1σ)
- Scale factor repeatability: 600 ppm (1σ)
- Non linearity: 0.7% of input acceleration (1σ)
