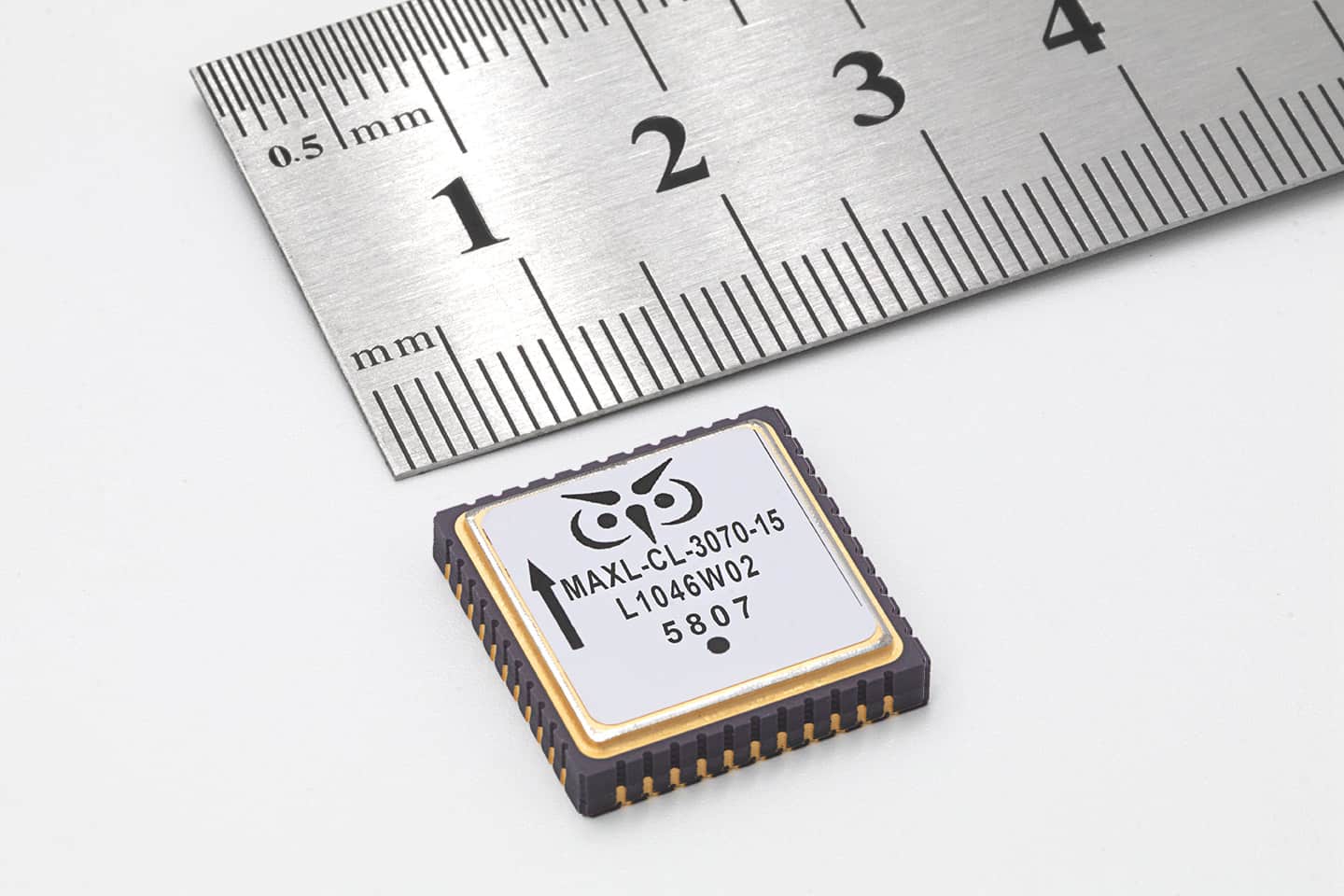

MAXL-CL-3070 MEMS Accelerometer

±70g sensing range Closed Loop MEMS accelerometer

MAXL-CL-3070 is a high-performance accelerometer based on a unique MEMS device and ASIC designed for tactical and inertial navigation applications, providing a digital acceleration output. Visit Website Contact
Saved
Save
MAXL-CL-3070 MEMS Accelerometer

MAXL-CL-3070 closed-loop MEMS accelerometer is available in several performance grades offering excellent measurement accuracy for a large range of inertial navigation and vibration sensing applications.

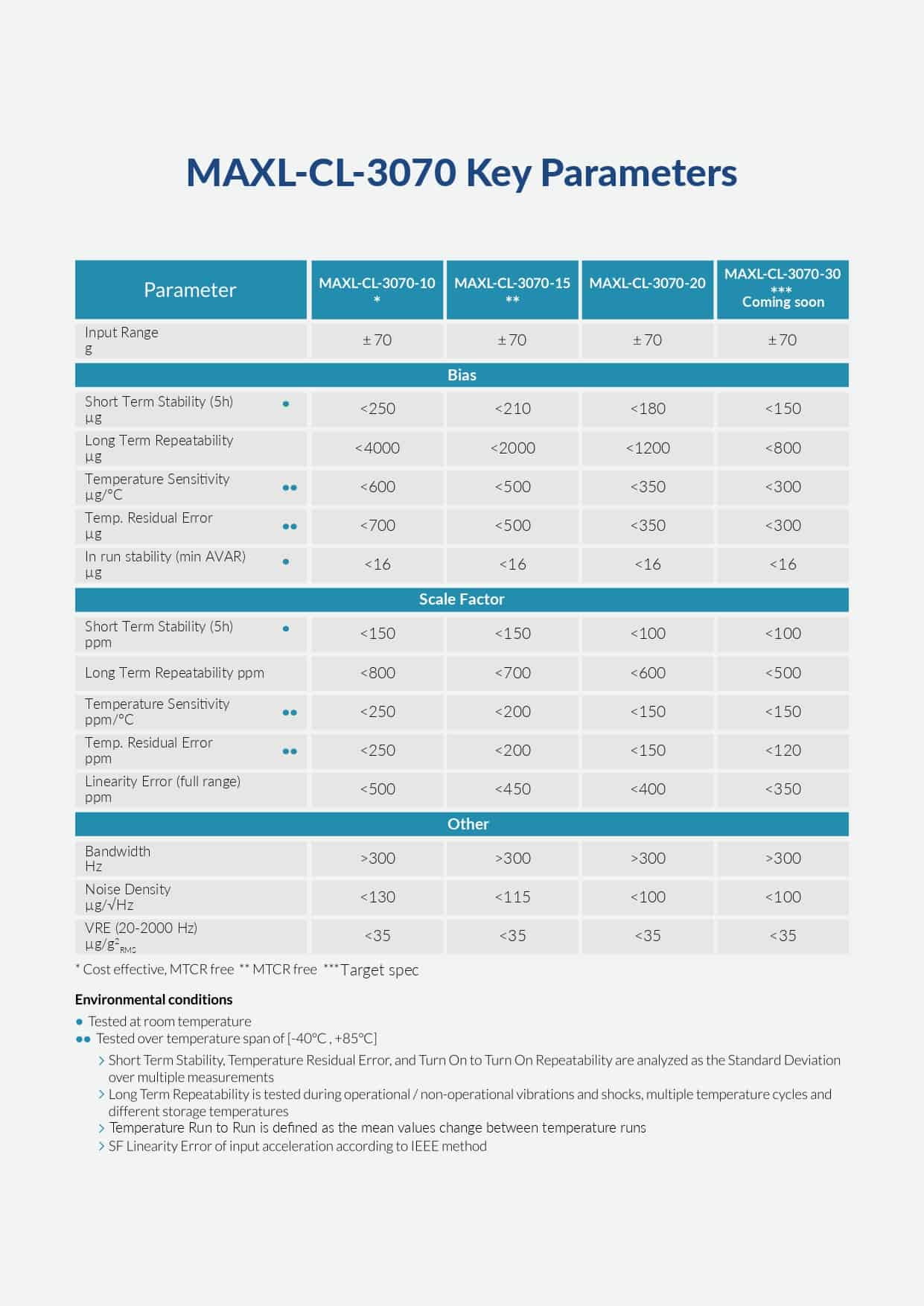

Key Parameters:
  • Sensing range: ±70 g
  • One year Bias repeatability: <1200 μg
  • One year Scale Factor repeatability: <600 ppm
  • Scale Factor Temperature sensitivity: <150 ppm/⁰C
  • Scale Factor Temperature Residual Error: <150 ppm
  • Bias Temperature Residual Error: <350 μg
