MAXL-CL-3050 MEMS Accelerometer
MAXL-CL-3050 closed-loop MEMS accelerometer is available in several performance grades offering excellent measurement accuracy for a large range of inertial navigation and vibration sensing applications.

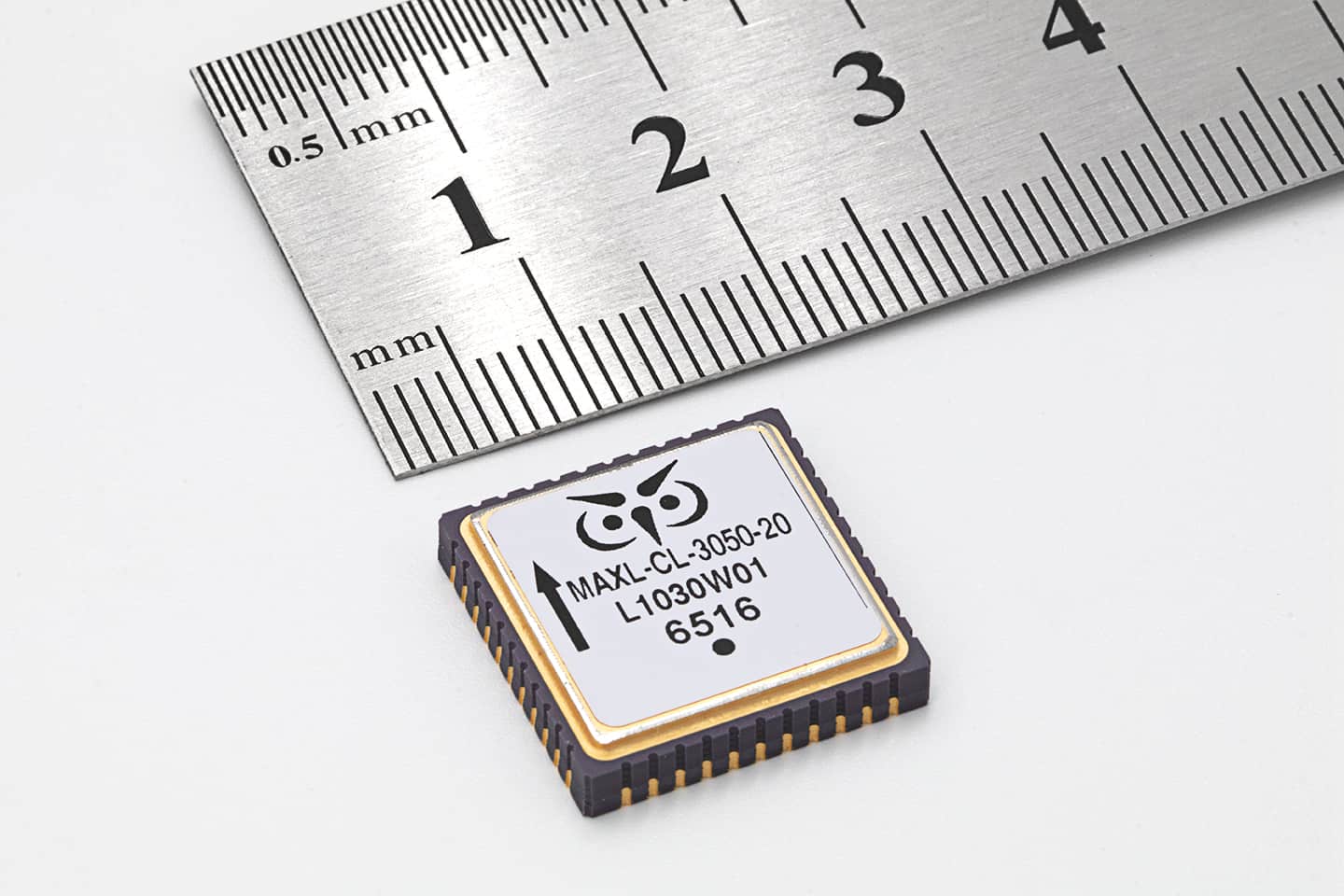

The MAXL-CL-3050 features an input range of ± 50 g and operates from a single power supply voltage of 5 V with<50 mA current consumption. The sensor’s system is composed of an LCC44 hermetically sealed package mounted on an interface board for customer evaluation and prototype testing. According to a specified ICD, Physical Logic offers its customers assembly and testing of accelerometers on customer integration boards.

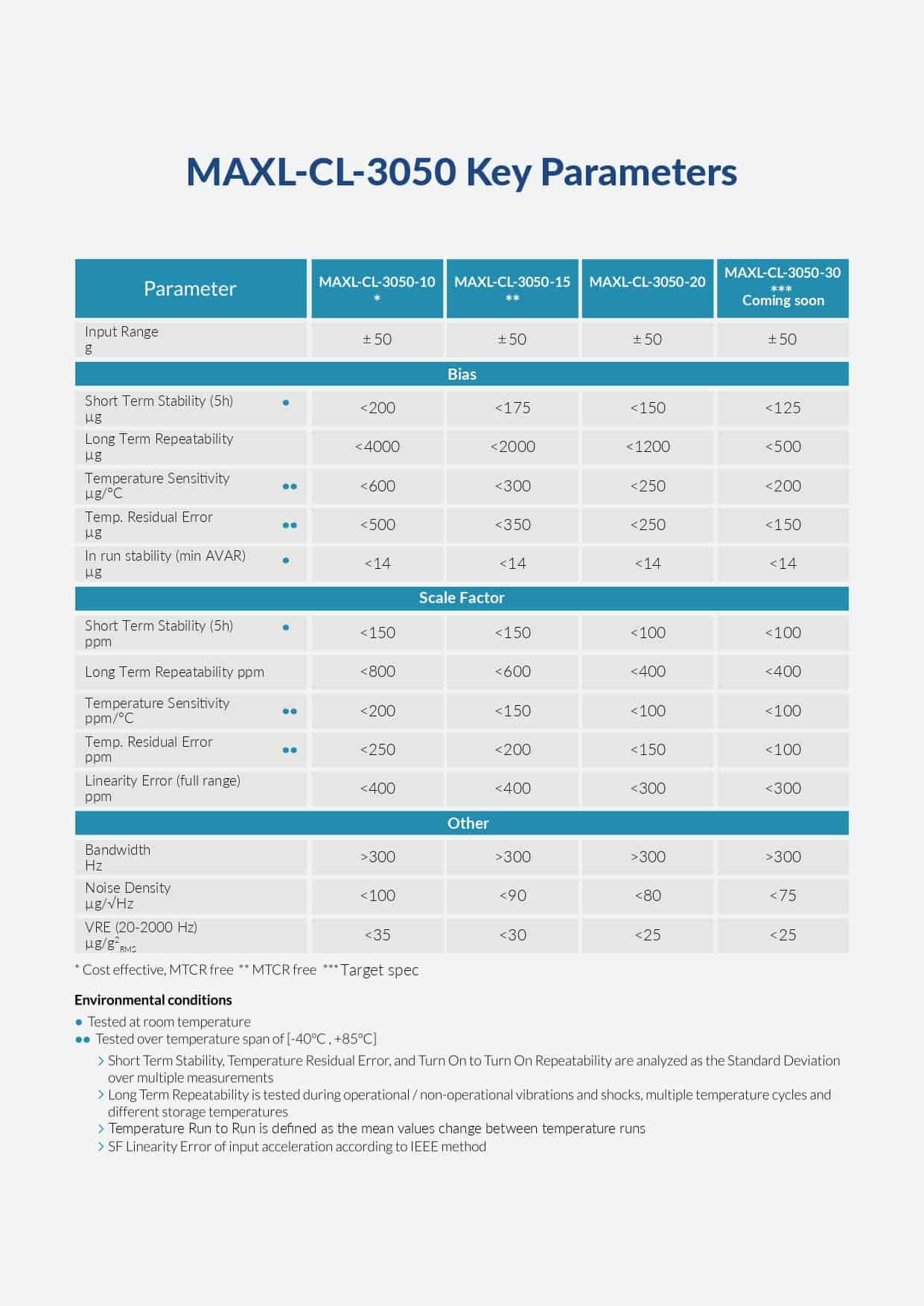

Key Parameters:- Sensing range: ±50 g
- One year Bias repeatability: <1200 μg
- One year Scale Factor repeatability: <500 ppm
- Bias Temperature sensitivity: <300 μg/⁰C
- Scale Factor Temperature sensitivity: <100 ppm/⁰C
- Scale Factor Temperature Residual Error: <150 ppm
- Bias Temperature Residual Error: <300 μg
