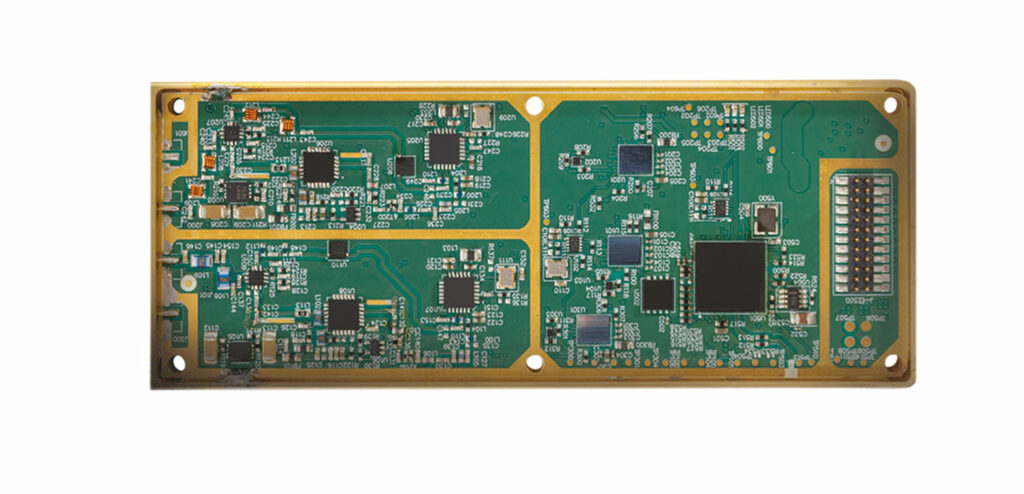

Blackwave Command & Control Link
Blackwave is a tactical wireless radio link for C2 (command and control) of small drones and robotic vehicles, providing robust communications and jamming resistance even in highly contested environments.
The triple-redundant system monitors RF environment and intelligently switches to a clean operational frequency to avoid interference. Built-in code-division multiple access (CDMA) capabilities allow multiple radios to operate seamlessly within the same area.
The durable drone C2 link can be operated in a number of modes:
- Spoofing Mode: spoofs devices using specific frequencies in order to disrupt hostile operations within the operational area
- Stealth Mode: operates on actively used frequencies at low gains to hide communications within ambient RF noise
- Brute Force Mode: operates at maximum power output to enable signal superiority within the operational area
Blackwave has been thoroughly tested by the US Army's Joint Vulnerability Assessment Branch (JVAB).
Specifications:
| Dimensions |
65 x 60 x 25 mm (embedded module) 65 x 60 x 40 mm (tactical module) |
| Weight |
130g (embedded module) 500g (tactical module) |
| Frequency Range | 100MHz to 3GHz |
| Frequency Hopping Range | 100MHz to 3GHz |
| RF Output Power | Active gain up to 1W |
| Bandwidth | 1 Mbps |
| Encryption | AES-256 |
| IP Rating | IP67 |
