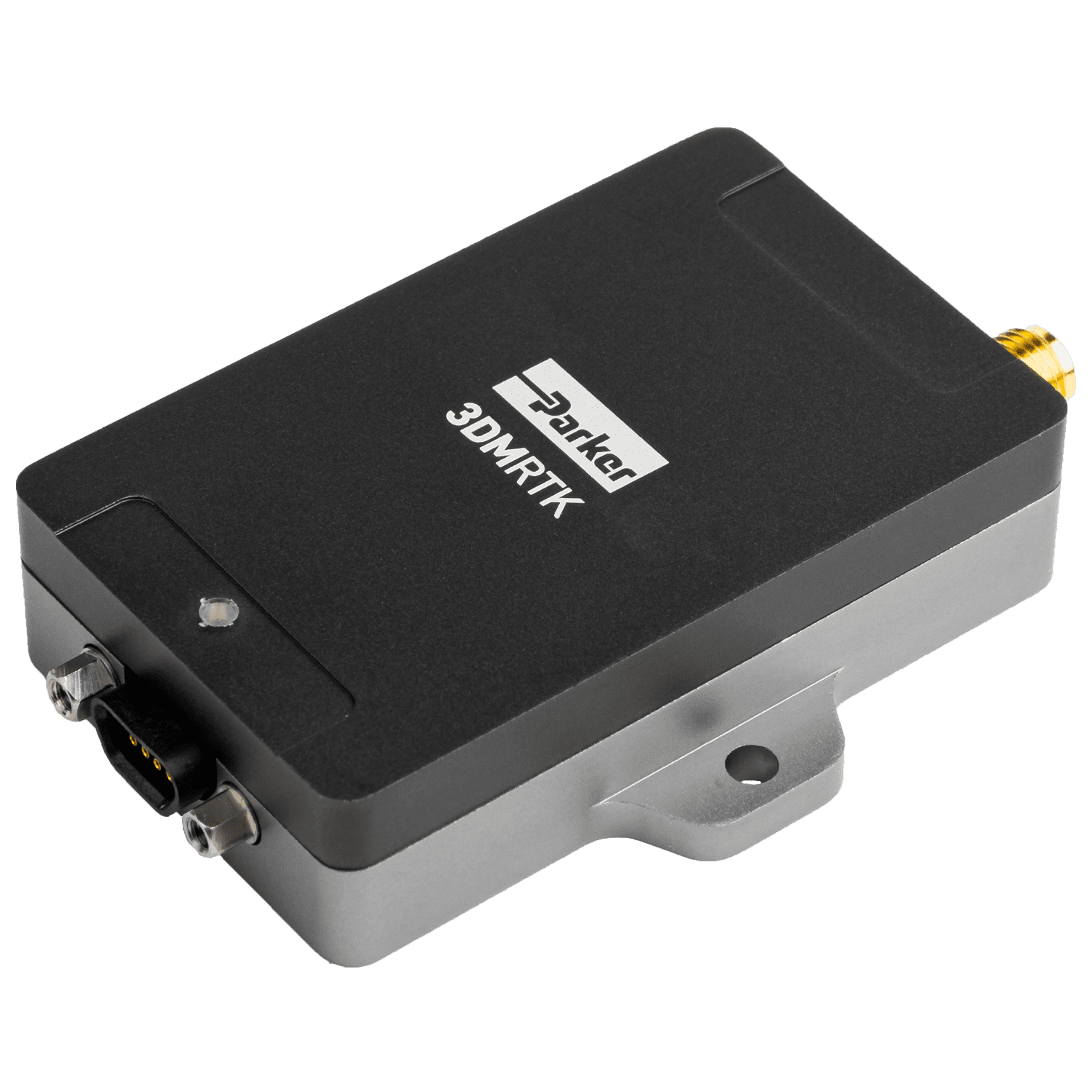

The 3DM-RTK network interface modem provides RTK correction data that can be used to enhance the positioning performance of Parker's GNSS-INS systems to centimeter-level accuracy. It utilizes a cellular connection to communicate with the SensorCloud RTK network, doing away with the need for local base station infrastructure.
The easy-to-use RTK corrections modem takes in NMEA location data and outputs standard RTCM3 messages. It is ideal for providing precision positioning and navigation for autonomous vehicles and robotics platforms, and for enabling BVLOS operations.
|Dimensions||47 x 65 x 14.25 mm|
|Power Consumption||1W typical, 2W max|
|Data Output Rate||1 Hz|
|Interfaces||Micro-D9, RS 232|
|Protocols||MIP, RTCM 3.1, NMEA|
|Certifications||FCC, IC, CE, PTCRB|
