ScanLift M Series

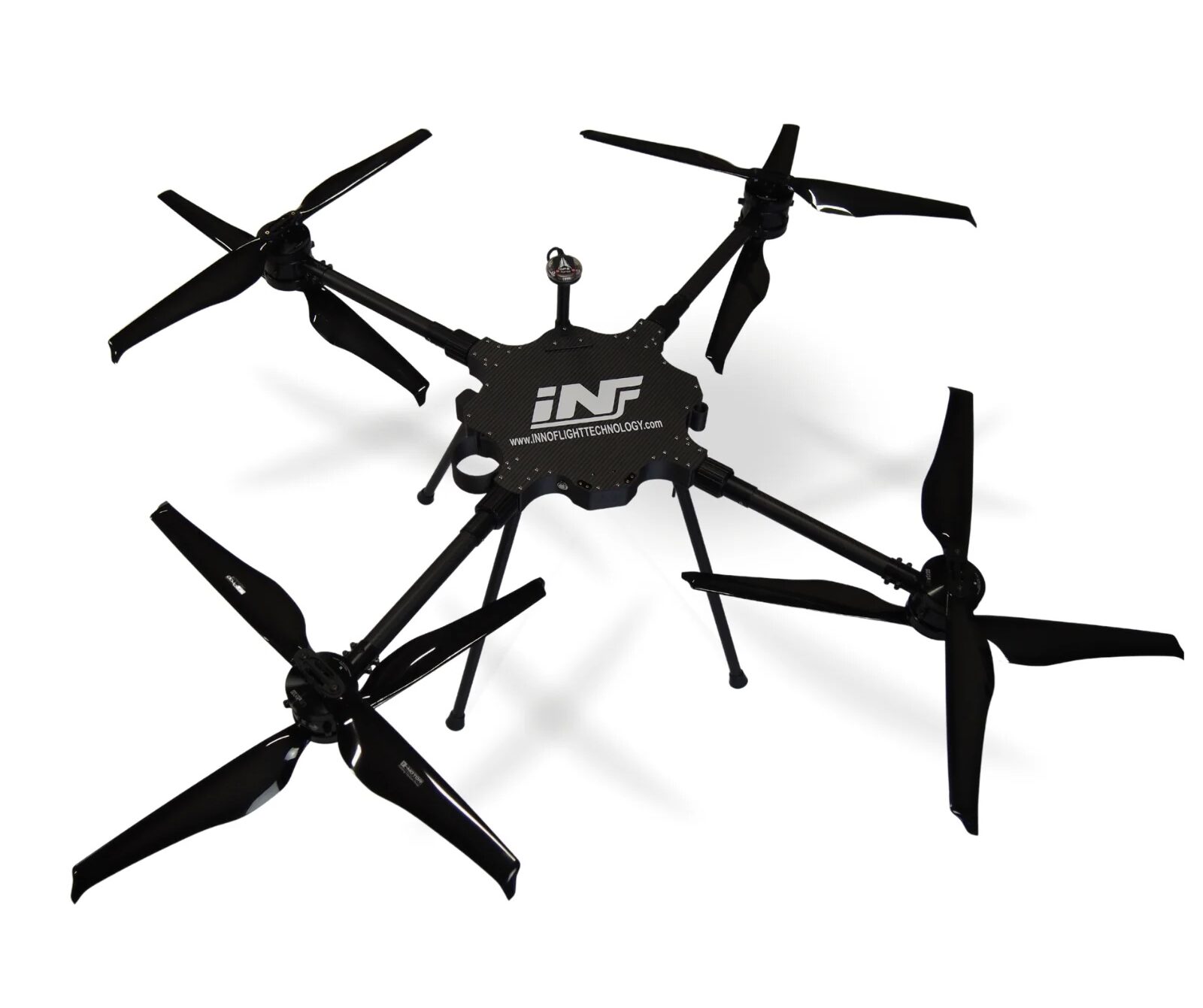

The ScanLift M Series is a rugged medium- to heavy-lift multirotor UAS that allows military and government personnel to focus on capturing high-quality data thanks to its ease of operation. It can be equipped with a range of payloads and can achieve up to 120 minutes of flight time with an optional hybrid propulsion system.

The platform utilizes a fully modular design that enables arms to be easily interchanged. This also allows the aircraft to be rapidly reconfigured between a four-rotor and a dual-redundant eight-rotor system, allowing you to prioritize endurance or carrying capacity. Payloads can also be easily swapped out thanks to a quick-connect dovetail mount system with integrated vibration dampening.

The ScanLift M Series can be assembled and disassembled in minutes, and packs down into a convenient rugged airline-compliant carry case with wheels and a handle.

Specifications:

X4 X8
Dimensions 1380mm motor to motor
2110mm prop tip to tip
600mm overall height
1380mm motor to motor
2110mm prop tip to tip
600mm overall height
MTOW 15.5 kg 25 kg
Max Payload Capacity 4 kg (electric propulsion) 8 kg (electric propulsion)
Endurance 45 min with 4 kg payload (electric propulsion) 35 min with 5 kg payload (electric propulsion)
Max Speed 10 m/s surveying
12 m/s flight
12 m/s surveying
15 m/s flight
Max Tested Wind Tolerance 28 km/h / 17.4 mph / 8.0 m/s 28 km/h / 17.4 mph / 8.0 m/s
