Specifications:

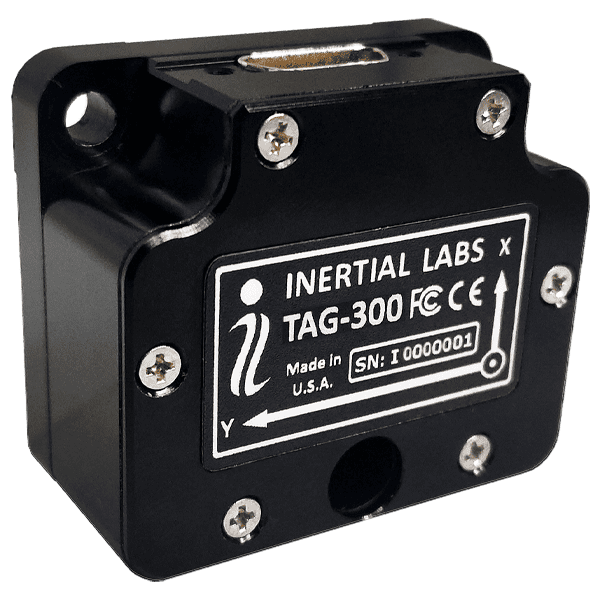

The TAG-200 and TAG-300 are tactical-grade two- and three-axis MEMS gyroscopes featuring low SWaP, noise and latency as well as a wide bandwidth. They are designed for stabilization and pointing applications such as antenna platforms and EO/IR gimbals for manned and unmanned aircraft.
The ITAR-free TAG gyros are engineered to withstand the harshest environments, with no moving parts and tested to MIL-STD-810 levels of shock and vibration. Each unit is factory-calibrated over the entire operation temperature range, and precision-machined to ensure extremely low non-orthogonality and misalignment between sensitive elements.
| TAG-200 | TAG-300 | |
| Number of Axes | Two | Three |
| Measurement Range | ±450; ±950; ±2000 | ±450; ±950; ±2000 |
| Data Update Rate | 2000 Hz | 2000 Hz |
| Bias in-run Stability | 2º/hour (Allan Variance, RMS) | 2º/hour (Allan Variance, RMS) |
| Noise (ARW) | 0.08º/√hour | 0.08º/√hour |

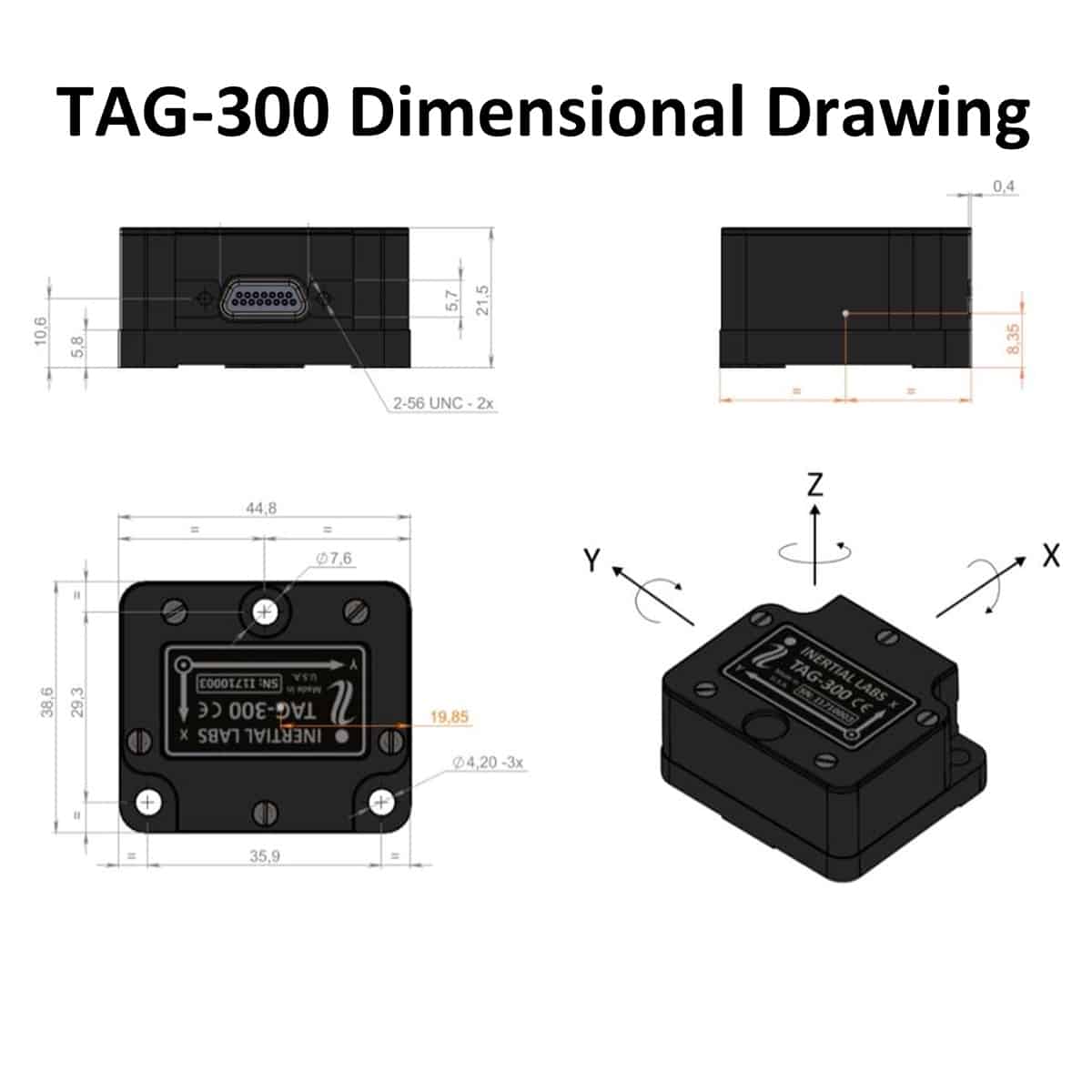

| Size (mm) | 39 x 45 x 22 | 39 x 45 x 22 |
| Weight (gram) | 70 | 70 |
| Applications | Anti-Roll Systems, Computer Pointing Devices, Optical Image Stabilization | Tree Dimensional Optical Image Stabilization, Virtual Reality |
