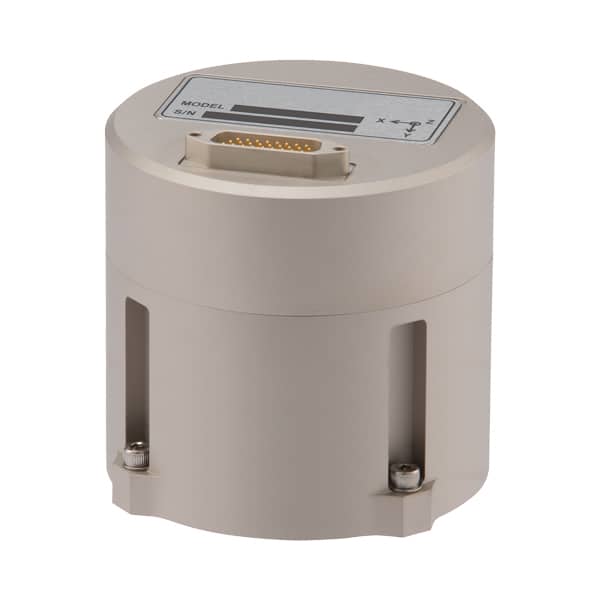

IMU-FI-200C Inertial Measurement Unit
The sensor is fully calibrated and temperature compensated, and has been thoroughly tested to perform under significant variations in temperature, high vibration, and shock. It also features continuous built-in test (BIT) capabilities, configurable communications protocols, and electromagnetic interference (EMI)
protection.
Highly suited to both motionless and high dynamics applications, the IMU-FI-200C is ideal for UAV and UUV navigation and control, platform and antenna stabilization, and incorporation into AHRS and INS.
| Dimensions (D x H) | 88.9 x 84.5 mm |
| Weight | 790g |
| Power Consumption | 5.5W @ 5V |
| Gyroscope Bias Repeatability | 0.5 deg/hr |
| Gyroscope ARW | 0.025 deg/√hr typical |
| Accelerometer Bias In-run Stability | 0.015 mg |
| Accelerometer VRW | 0.015 m/sec/√hr typical |
| Operating temperature | -40 – +71 deg C |
