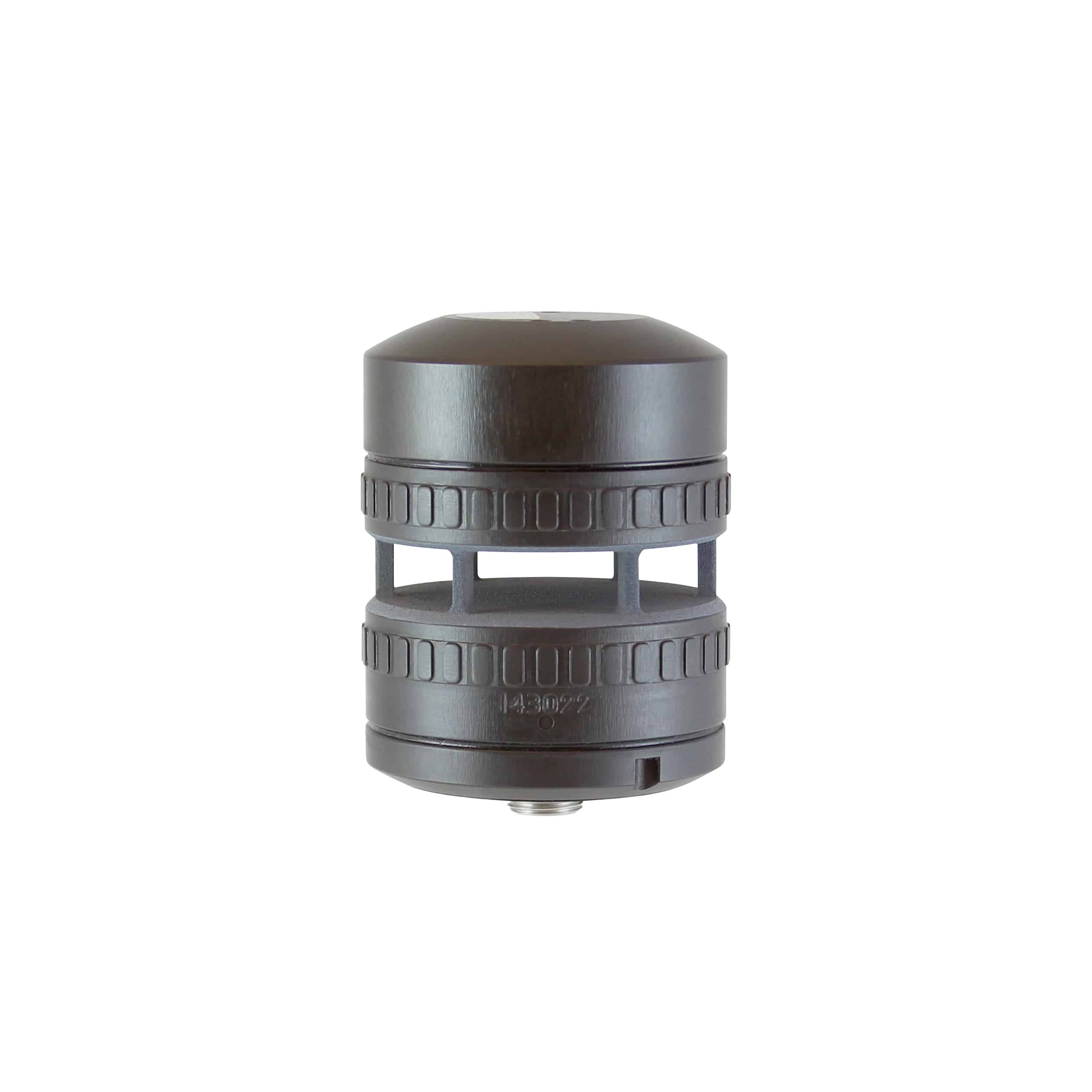

The FT742-SM is a surface-mount wind speed and direction sensor that is designed for military and defense OEMs and systems integrators. The rugged low-SWaP unit is ideal for integration into a variety of platforms, including drones, autonomous robotics, military vehicles, and weather stations.
The sensor can be installed to ensure alignment with a standard reference such as Magnetic North, or the integrated electronic compass can be used to calculate this automatically. The FT742-SM also includes a thermostatically-controlled heater for ice-free operation.
The FT742-SM uses no moving parts and is maintenance-free, and has been extensively tested and certified for vibration and shock resistance as well as RF immunity.
|Dimensions (H x W)||71.2 x 56 mm|
|Power||6 – 30V supply voltage
25 mA supply current (heater & compass disabled)
Up to 2A supply current with heater
|Wind Speed Measurement||0-75m/s
|Wind Speed Measurement Accuracy||±0.3m/s (0-16m/s)
|Wind Direction Measurement||0 to 360°|
|Wind Direction Measurement Accuracy||4° RMS|
|Operating Temperature Range||-40 to 85°C|
