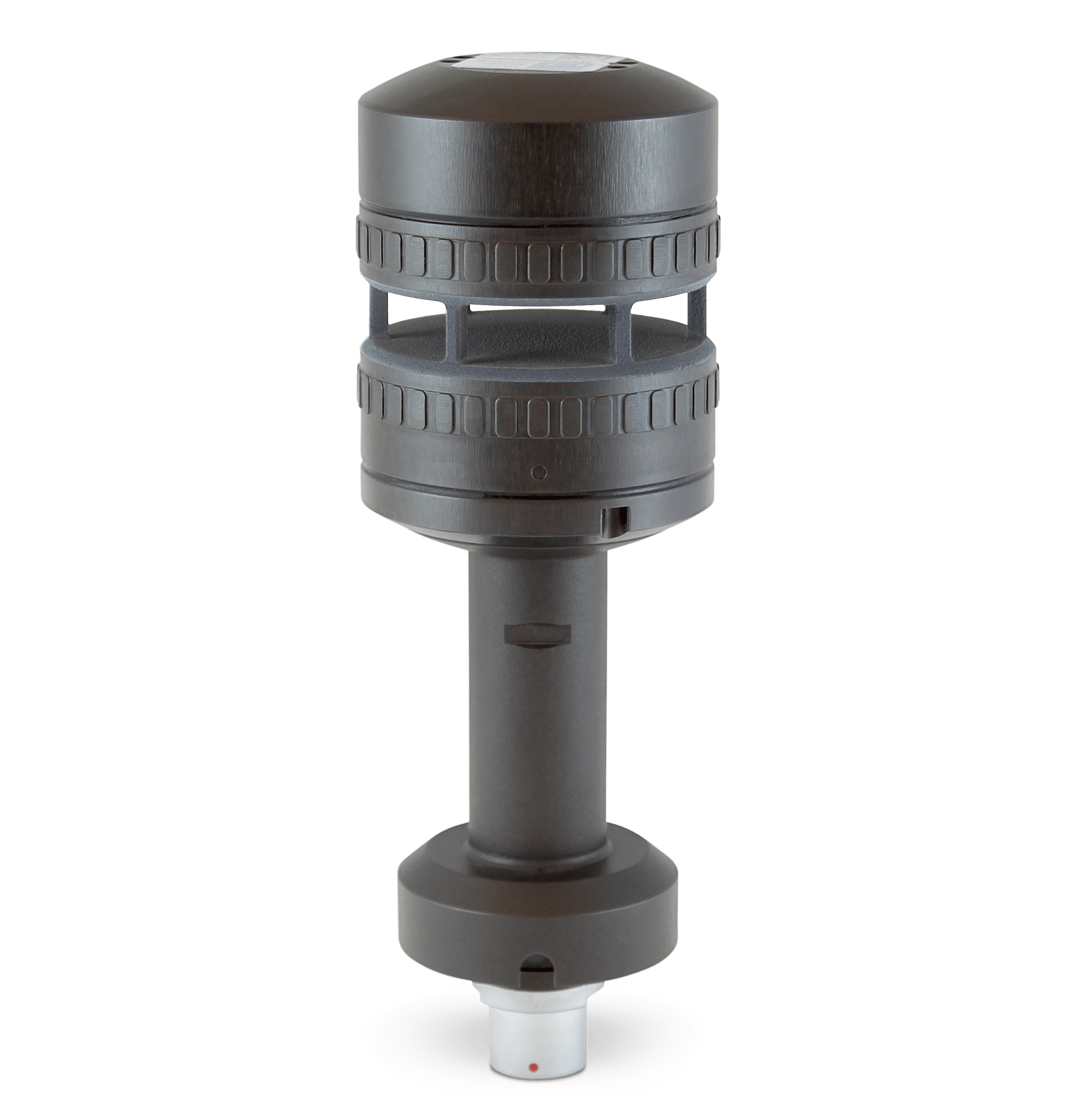

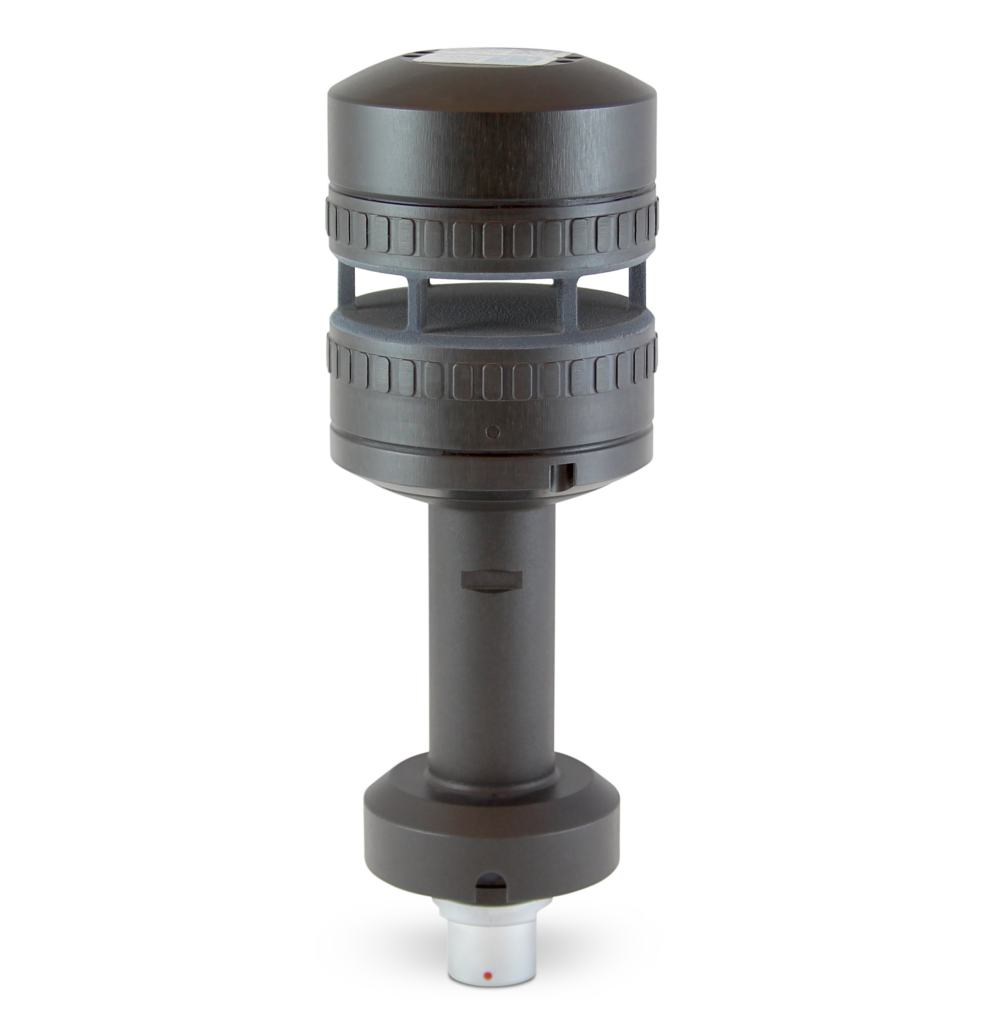

FT742-PM Pipe Mount Wind Sensor
The FT742-PM is designed to be attached to a 40-51mm pipe via our pipe mount adapter, allowing the cable to be run inside for enhanced lightning and environmental protection. Able to operate at temperatures between -40°C and +85°C and altitudes up to 4000m, the ultrasonic weather sensor is ideal for deployment in extremely harsh conditions around the world.
The unit includes a thermostatically-controlled heater for ice-free operation. The FT742-PM uses no moving parts and is maintenance-free, and has been extensively tested and certified for vibration and shock resistance as well as RF immunity.
Specifications:
| Dimensions (H x W) | 161 x 56 mm |
| Weight | 350g |
| Power | 12 – 30V supply voltage 31 mA supply current (heater disabled) Up to 4A supply current with heater |
| Wind Speed Measurement | 0-75m/s 0-270km/h 0-145.8 knots |
| Wind Speed Measurement Accuracy | ±0.3m/s (0-16m/s) ±2% (16-40m/s) ±4% (40-75m/s) |
| Wind Direction Measurement | 0 to 360° |
| Wind Direction Measurement Accuracy | 2° RMS (within ±10° datum) 4° RMS (outside ±10° datum) |
| Operating Temperature Range | -40 to 85°C |
