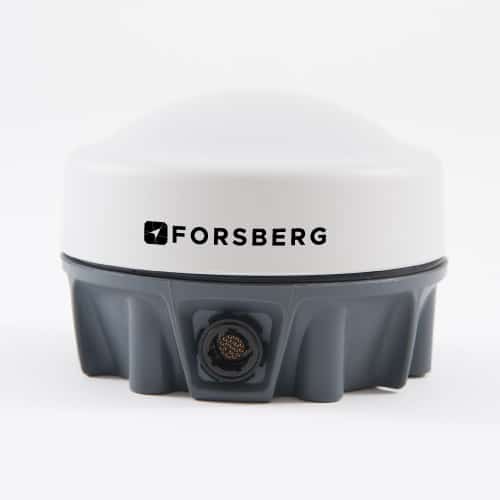

ReACT Smart GNSS Antenna
The rugged unit is MIL-STD qualified for resistance against shock, vibration, and other environmental conditions.
The unit's high-performance NovAtel receiver features advanced interference and jamming protection, and the multi-frequency and multi-constellation system is future-proof and easily upgraded through software.
ReACT provides position accuracy of 1.5 metres without correction, and can be upgraded to utilise RTK for accuracy down to 1cm. The system can be combined with an IMU to create a high-precision inertial navigation system.
Specifications:
| Dimensions | 116 x 116 x 84mm 116 x 116 x 79mm (models with integrated centre cable) |
| Weight | ~600g |
| Power Consumption | <3W typical |
| Horizontal Position Accuracy | Single Point L1 1.5m Single Point L1/L2 1.2m SBAS 0.6m DGPS 0.4m RTK 1cm + 1ppm |
| Time Accuracy | 20 ns RMS |
| Velocity Accuracy | 0.03 – 0.05 m/s RMS |
