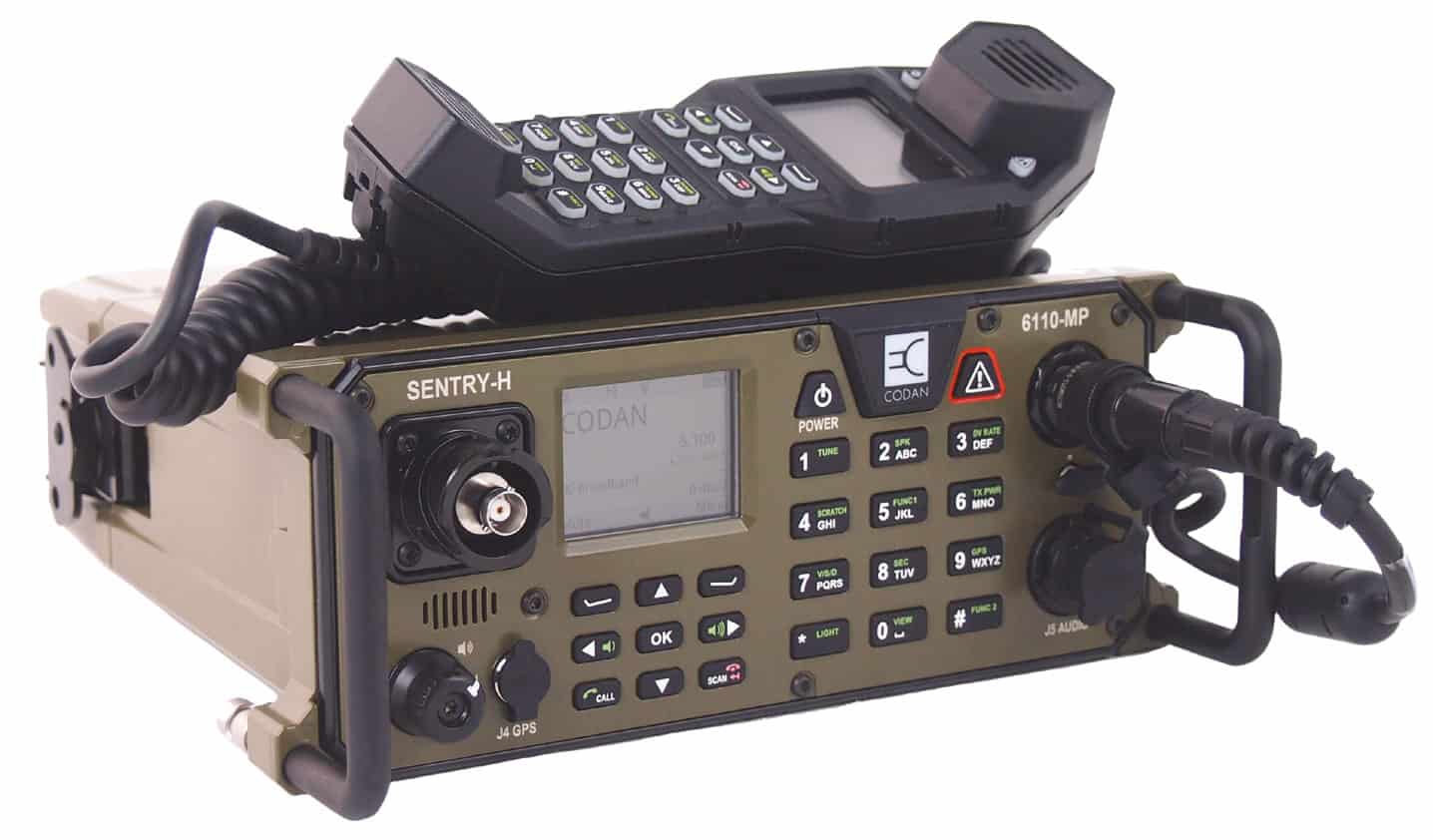

Sentry-H 6110-MP
The Sentry-H 6110-MP is a rugged man-portable SDR solution for secure on-the-move voice and data communications. Weighing less than 4.7 kg, it is one of the smallest and lightest HF manpack radios on the market, delivering 30W of RF power and providing battery life of up to 79 hours.
The radio unit provides IP connectivity over Ethernet/Wi-Fi and USB, and includes a smart handset with an intuitive colour display and integrated GPS. The waterproof design is compliant with MIL-STD-810G.
Specifications:
| Size (L x W x H) | 284 (324 with handles) x 246 x 96 mm |
| Weight | <5kg including battery |
| Power Output | Power Output: 30 W RF ± 1dB (two-tone or voice), user-programmable in 1W steps |
| Frequency Range |
TX: 1.6–30 MHz RX: 250 kHz–30 MHz |
| Modes | Single Sideband USB, LSB (J3E), AM (H3E), CW (J2A), AFSK (J2B), FSK (F1B), ISB (B7D or B2B), Software Defined |
| Encryption | AES-256/CES-128 |
