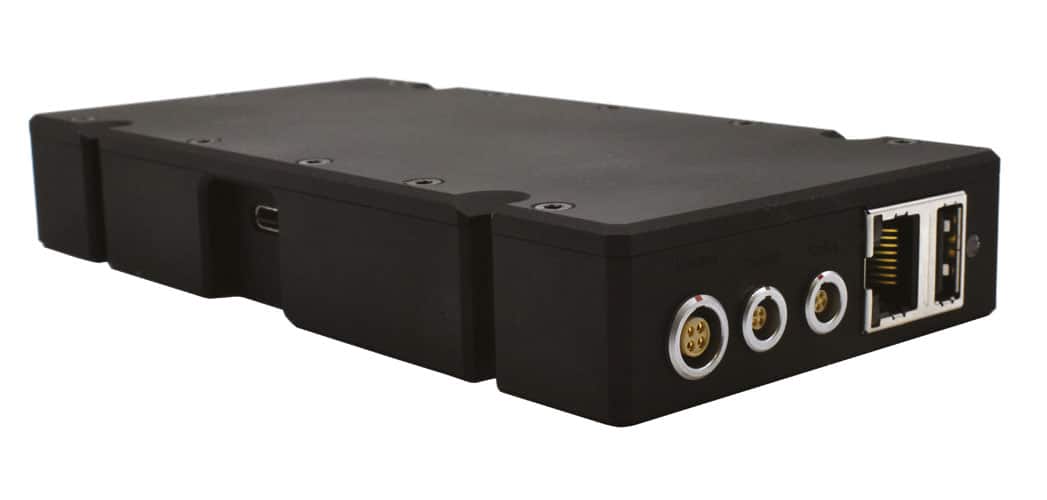

SDR2x1W-P
The SDR2x1W-P is a versatile software-defined radio transceiver that is ideal for a wide variety of applications including armored and unmanned vehicles, bomb disposal robotics, and temporary or fixed site network infrastructure. Providing 2x1W of output power, it can be configured as an IP Mesh radio, COFDM transmitter or receiver.
The unit features a rich set of interface options, including native Ethernet, USB, serial RS-232, and audio. It can be powered directly from a USB-C battery pack or end user device.
Specifications:
| Size (L x W x D) | 160 x 75 x 24 mm |
| Weight | ~456g |
| Tuning Step | 125 kHz |
| RF Power Output | 1W (+30dBm) per output, 2W total |
| Frequency Range Options | 1.14-1.50GHz, 1.67-2.35GHz, 1.98-2.70GHz, 4.40-5.00GHz |
