SDR-M

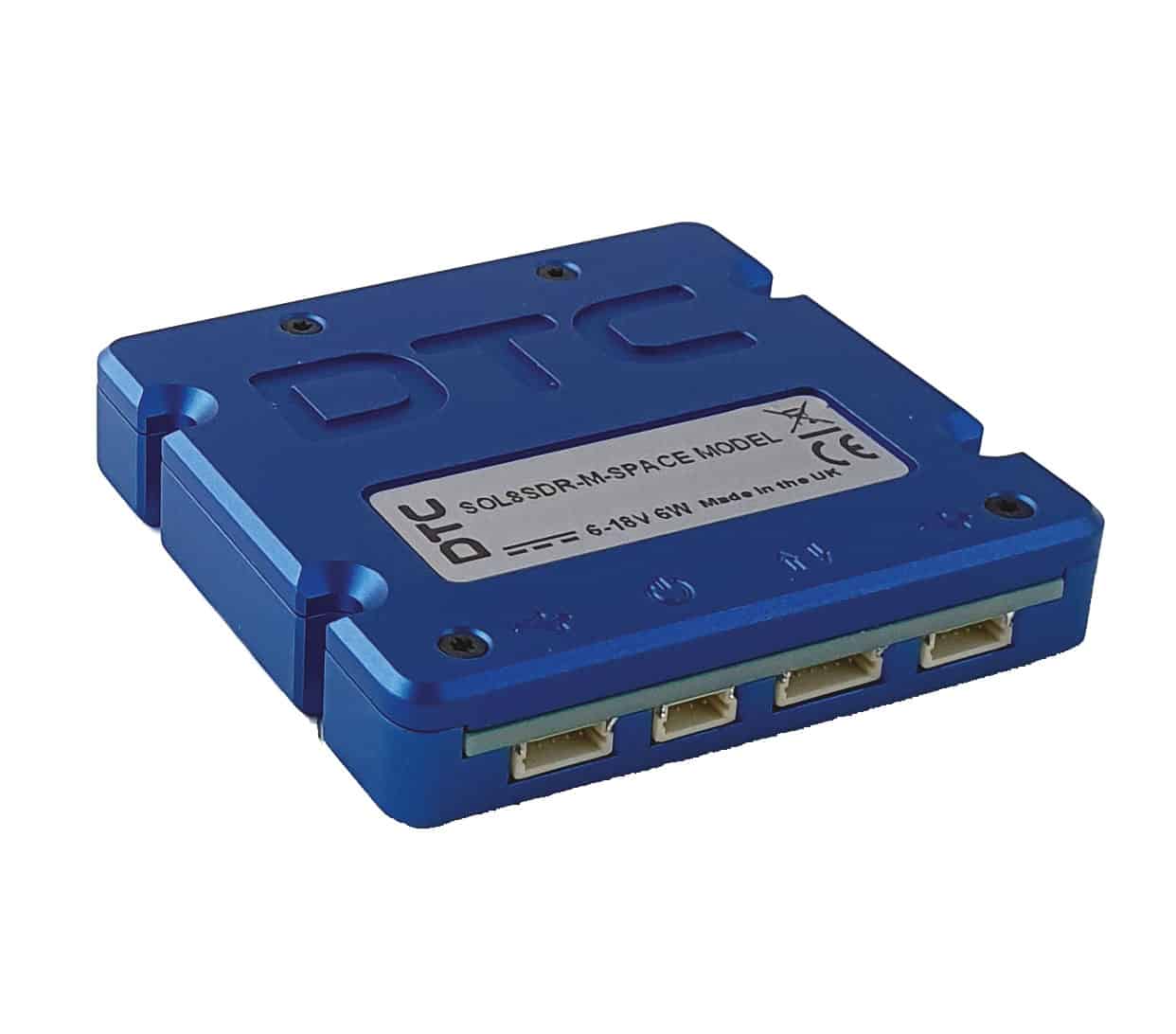

The SDR-M is an ultra-miniature SDR transceiver module designed for small drones and unmanned systems as well as body-worn concealment applications. The low-SWaP unit is available in a robust enclosure as well as a bare-board form factor for OEMs and systems integrators.
Consuming only 3W of input power but delivering 200mW of output power, the SDR-M provides access to DTC's most cutting-edge waveforms including MeshUltra-X, enabling 144 nodes to operate in just 1.25MHz of bandwidth. The unit provides two USB interfaces that can be used to connect a variety of peripherals including cameras, headsets, and Wi-Fi/cellular/Ethernet dongles.
Specifications:
| Size (L x W x D) |
54 x 55 x 11 mm (L & L/S Band) 54 x 50 x 11 mm (S Band) |
| Weight |
62g (L & L/S Band) 60g (S Band) |
| Tuning Step | 125 kHz |
| RF Power Output |
200mW per output (L-band only) or 100mW (+20dBm) per output |
| Bandwidth | 1.25 – 20 MHz |
| Frequency Range Options | 1.20–1.75GHz, 1.67-2.35GHz, 2.10-2.50GHz |
