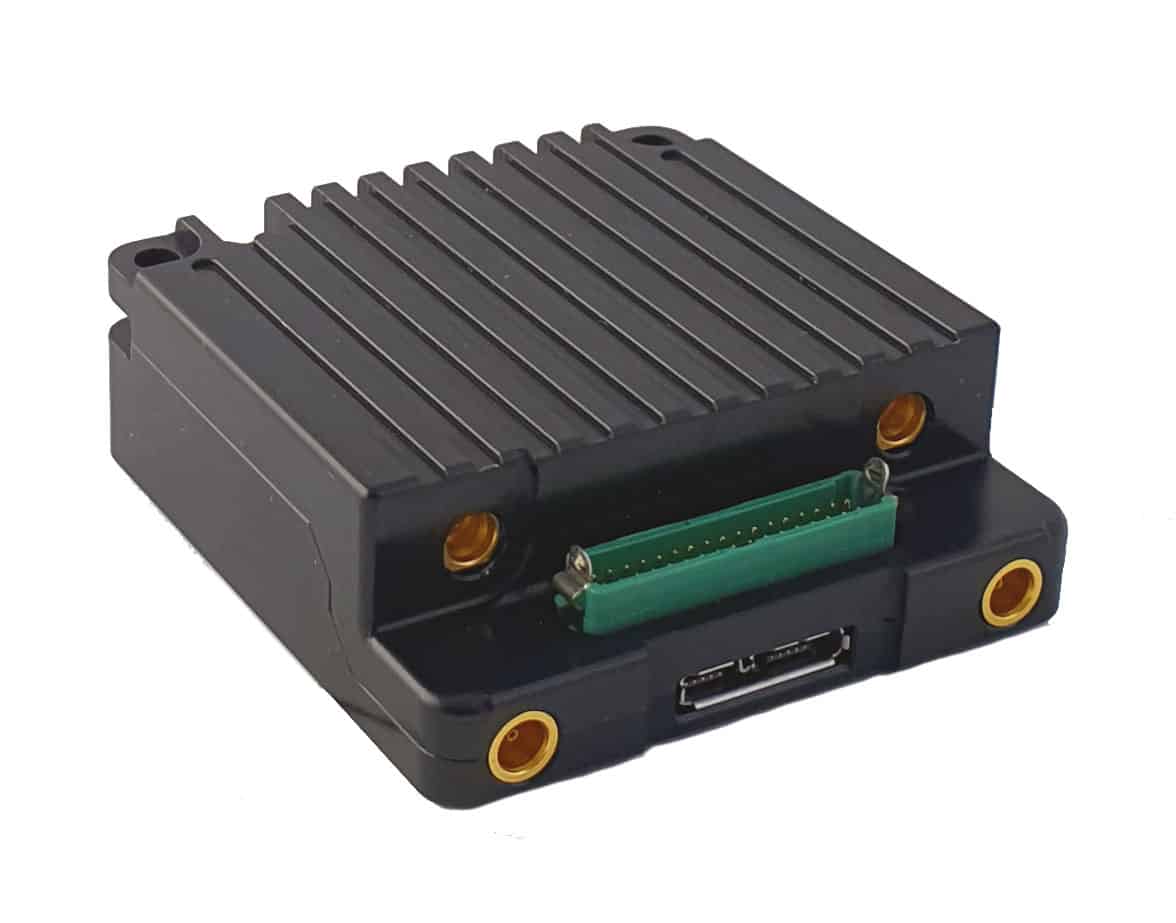

SDR-C
The SDR-C is an ultra-miniature COFDM digital video transceiver designed for the most compact Point of View (PoV), body worn and concealment applications. Featuring dual H.264 video encoders with SD-HD-SDI inputs, it can be further enhanced with additional off-board 1W, 2W and 5W amplifiers to boost range, performance and throughput.
The SDR-C can be configured as a transmitter, receiver, dual video encoder, or IP Mesh radio node. The unit includes an additional ISM-telemetry band transceiver for control, PTZ (pan/tilt/zoom) and low-power standby.
Specifications:
| Size (L x W x D) |
50 x 50 x 18 mm 50 x 50 x 24 mm (UHF) |
| Weight |
70g 82g (UHF) |
| Tuning Step | 125 kHz |
| RF Power Output | 2x100mW |
| Frequency Range Options |
320-470MHz + 902-928MHz tel. 1.14-1.50GHz + 433.05-434.79MHz tel. 1.14-1.50GHz + 863-870MHz tel. 1.67-2.35GHz + 433.05-434.79MHz tel. 1.67-2.35GHz + 863-870MHz tel. 1.67-2.35GHz + 902-928MHz tel. 1.98-2.70GHz + 433.05-434.79MHz tel. 1.98-2.70GHz + 863-870MHz tel. 1.98-2.70GHz + 902-928MHz tel. 4.40-5.00GHz + 433.05-434.79MHz tel. 4.40-5.00GHz + 863-870MHz tel. 4.40-5.00GHz + 902-928MHz tel. 5.50-6.00GHz + 902-928MHz tel. |
