RS304FM Rugged Airborne Server Designed for ISR ingestion of camera data
Crystal Group, Inc. / products / RS304FM Rugged Airborne Server

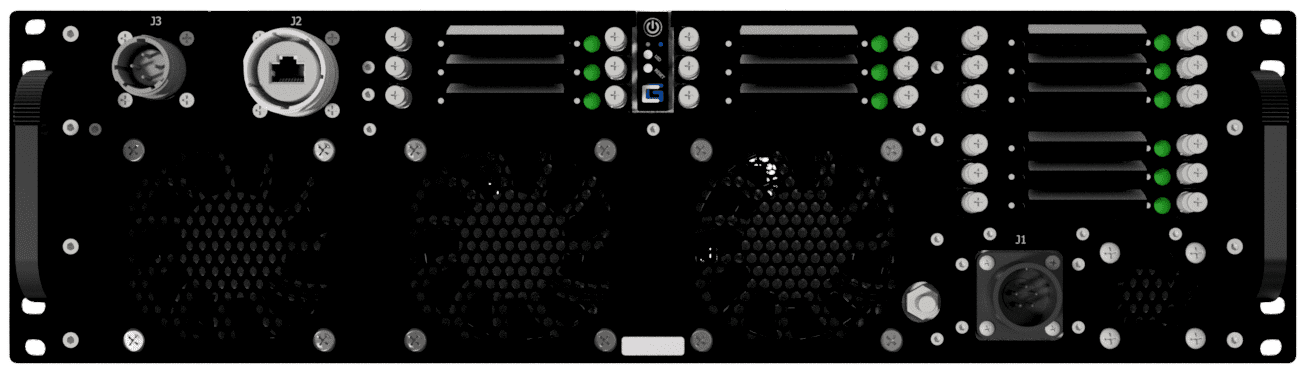

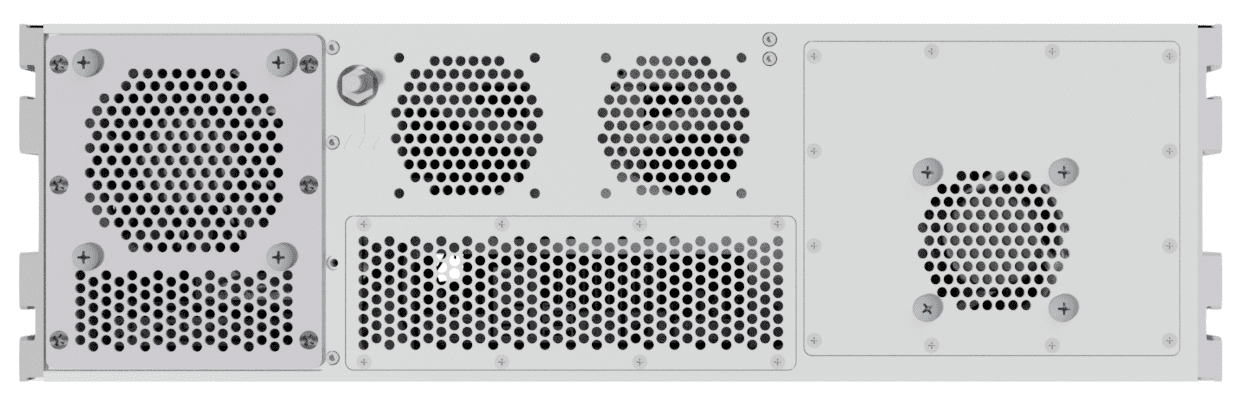

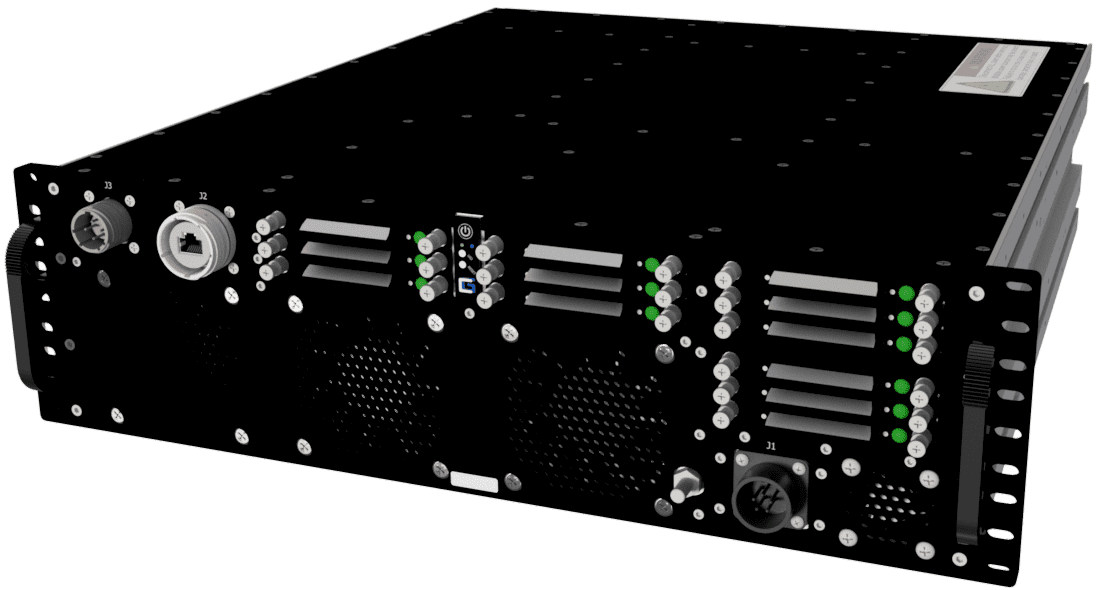

RS304FM Rugged Airborne Server

Designed for ISR ingestion of camera data

The RS304FM is ideally suited for high-performance computing that requires networking, data manipulation, and fast storage. This 3U rugged server with 12 removable SATA drives offers multiple hardware RAID options for data storage capacity and versatile redundancy. Equipped with four 10GbE ports, the system provides low latency video capture and processing. An integrated elapsed-time indicator monitors logistics and operational needs while a patented DIMM retention method ensures reliable performance in unstable air and landing regimes. Optional TPM and DAR features create high-side security options in the event of unexpected interruptions in flight. The RS304FM uses military circular connections for power and data, and includes a 50 ms power holdup capability required for airborne platform performance. Visit Website Contact
Saved
Save
RS304FM Rugged Airborne Server Key features
  • Rugged 3U, rack-mounted 20” depth
  • Lightweight aluminum construction – 35-38 lbs.
  • Easily mounted on Delrin glides, fixed mount, or Jonathan® rails
  • Up to 1 TB of DDR4 memory
  • Intel® Xeon® Scalable processors
  • Up to 12 removable 2.5” SATA, SAS, or NVMe drive carriers
  • Expandable with up to seven PCIe expansion slots
  • Modular MIL-CIRC panels
Download spec sheet
