Crystal Group FORCE™(FG2) PCIe Gen4 Servers Real-time accuracy at the edge

Crystal Group, Inc. / products / Crystal Group FORCE™(FG2) PCIe Gen4 Servers

Crystal Group FORCE™(FG2) PCIe Gen4 Servers

Real-time accuracy at the edge

Designed for optimal performance in the most unpredictable and remote environments, the next-gen Crystal Group FORCE™(FG2) PCIe Gen4-enabled rugged servers move heavy compute applications from data centers to the tactical edge. With an unmatched combination of ruggedization, power, speed, accuracy and customization, FG2 servers deliver ultra-low latency and parallel processing. This maximizes real-time speed and accuracy of demanding computational workloads, like sensor fusion, unmanned systems, communication, and intelligence. Visit Website Contact

Crystal Group FORCE™(FG2) PCIe Gen4 Servers

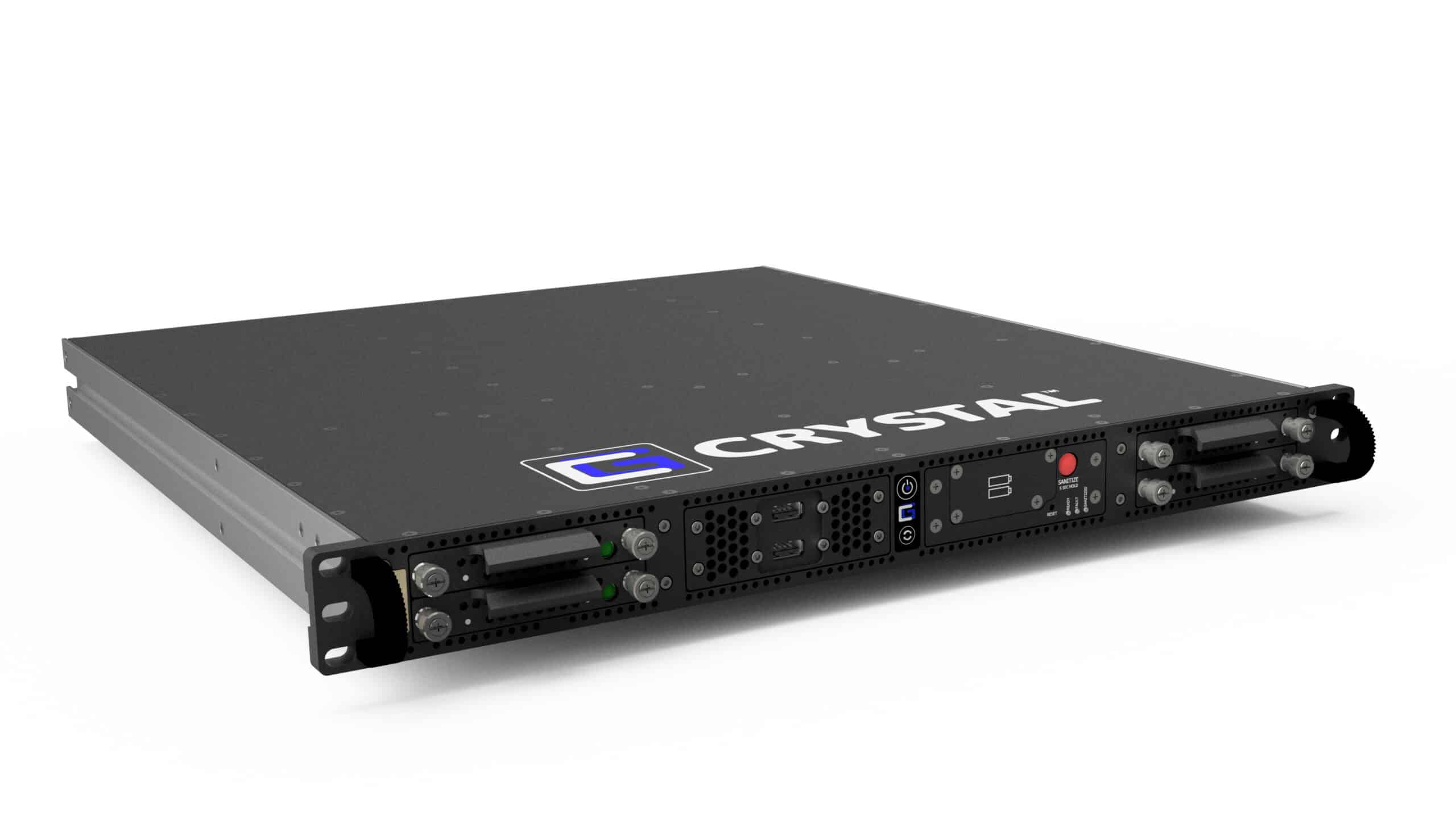

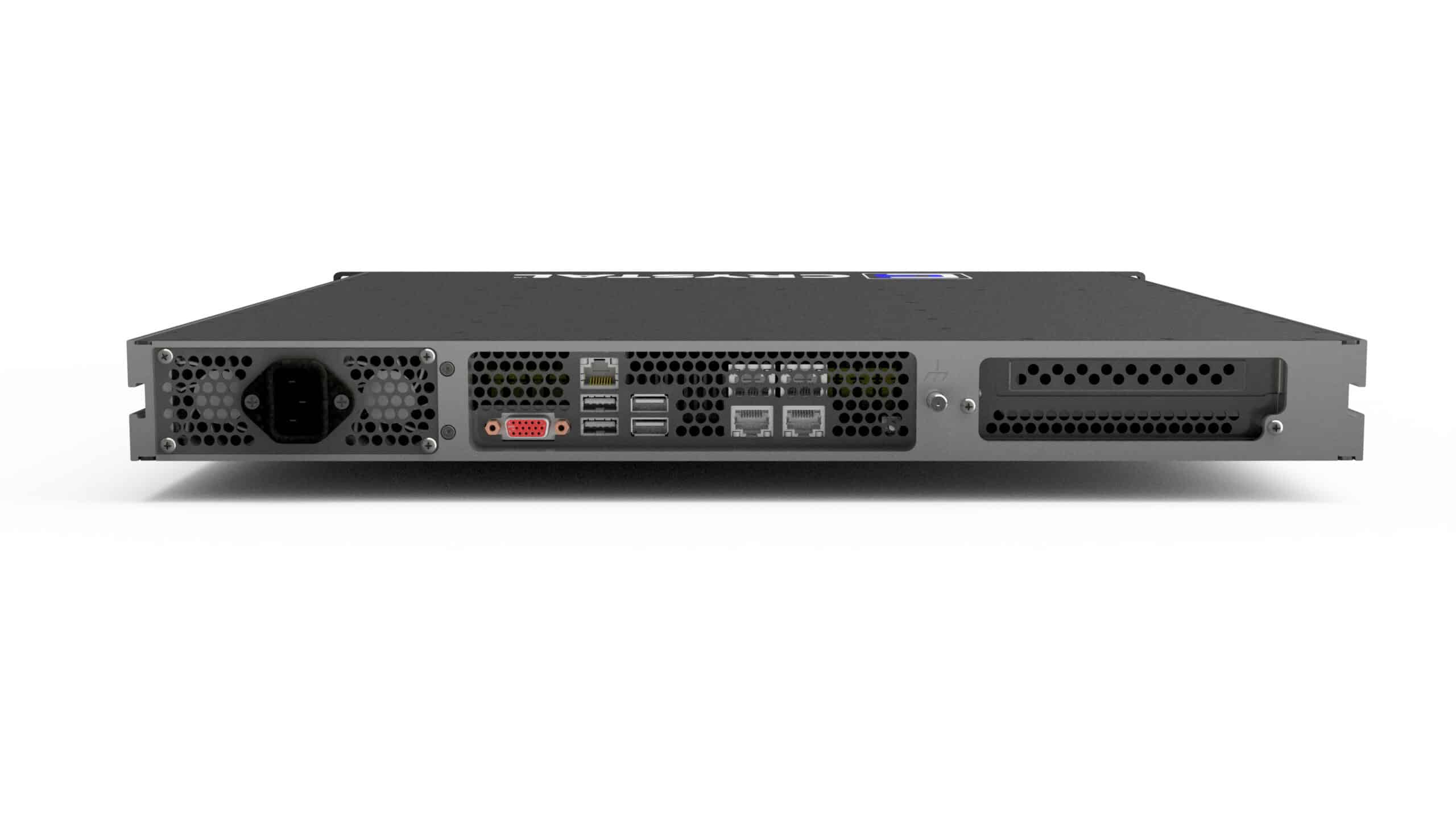

1U: Compact, general-purpose rugged server

Single or dual 3rd Gen Intel Xeon Scalable processors
Up to 36 cores of the LGA-4189 socket P+ CPU
Up to 2TB of RDIMM DDR4-3200MHz
1 PCIe Gen4 x16 expansion slot
4 NVMe or 8 SATA/SAS 2.5” SSD

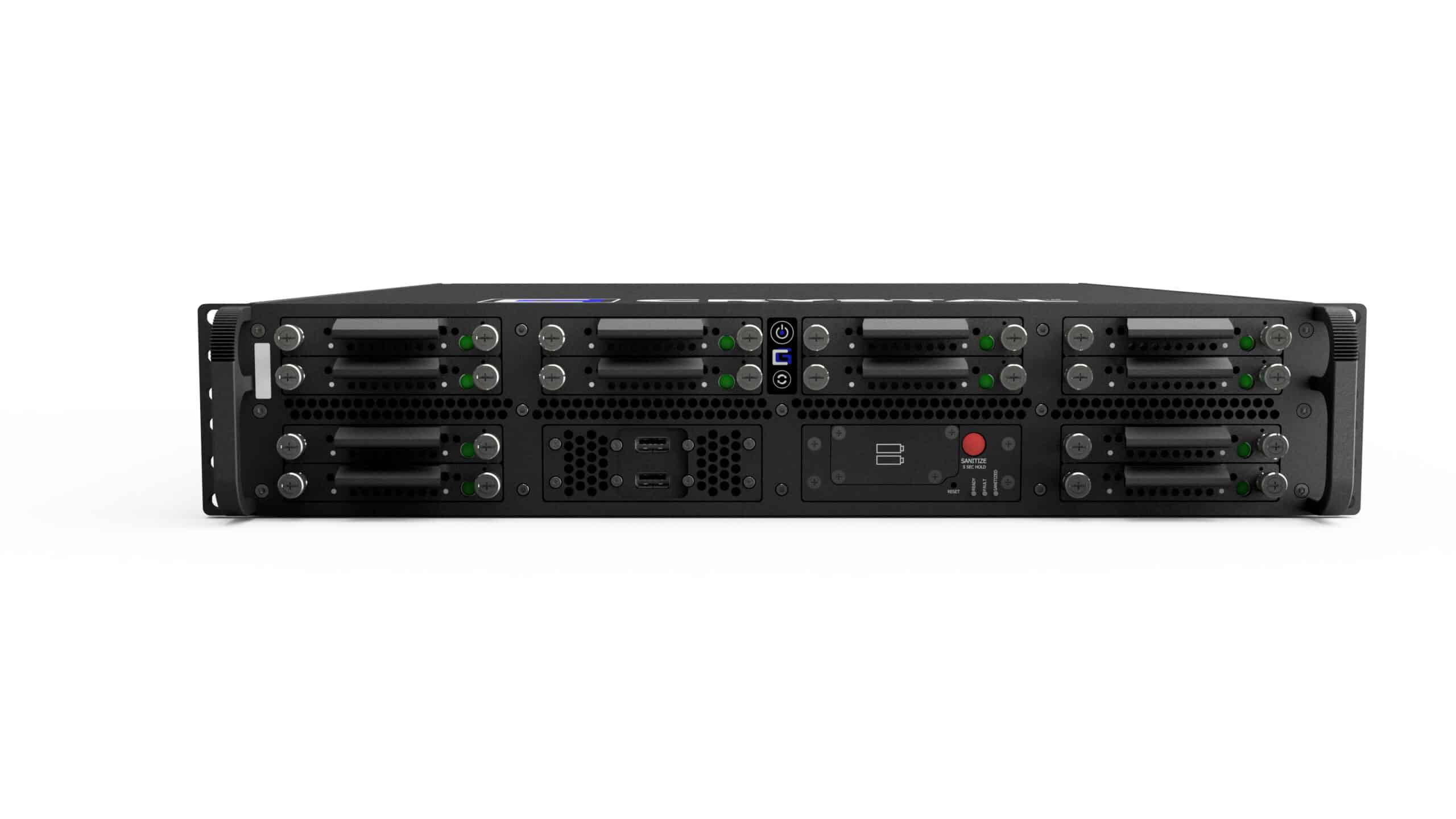

2U: High-end, server-class processing

Single or dual 3rd Gen Intel Xeon Scalable processors
Up to 72 cores of the LGA-4189 socket P+ CPU
Up to 4TB of RDIMM DDR4-3200MHz
Up to 6 PCIe Gen4 low-profile expansion cards
Up to 2 M.2 slots
8 NVMe or 16 SATA/SAS 2.5” SSD

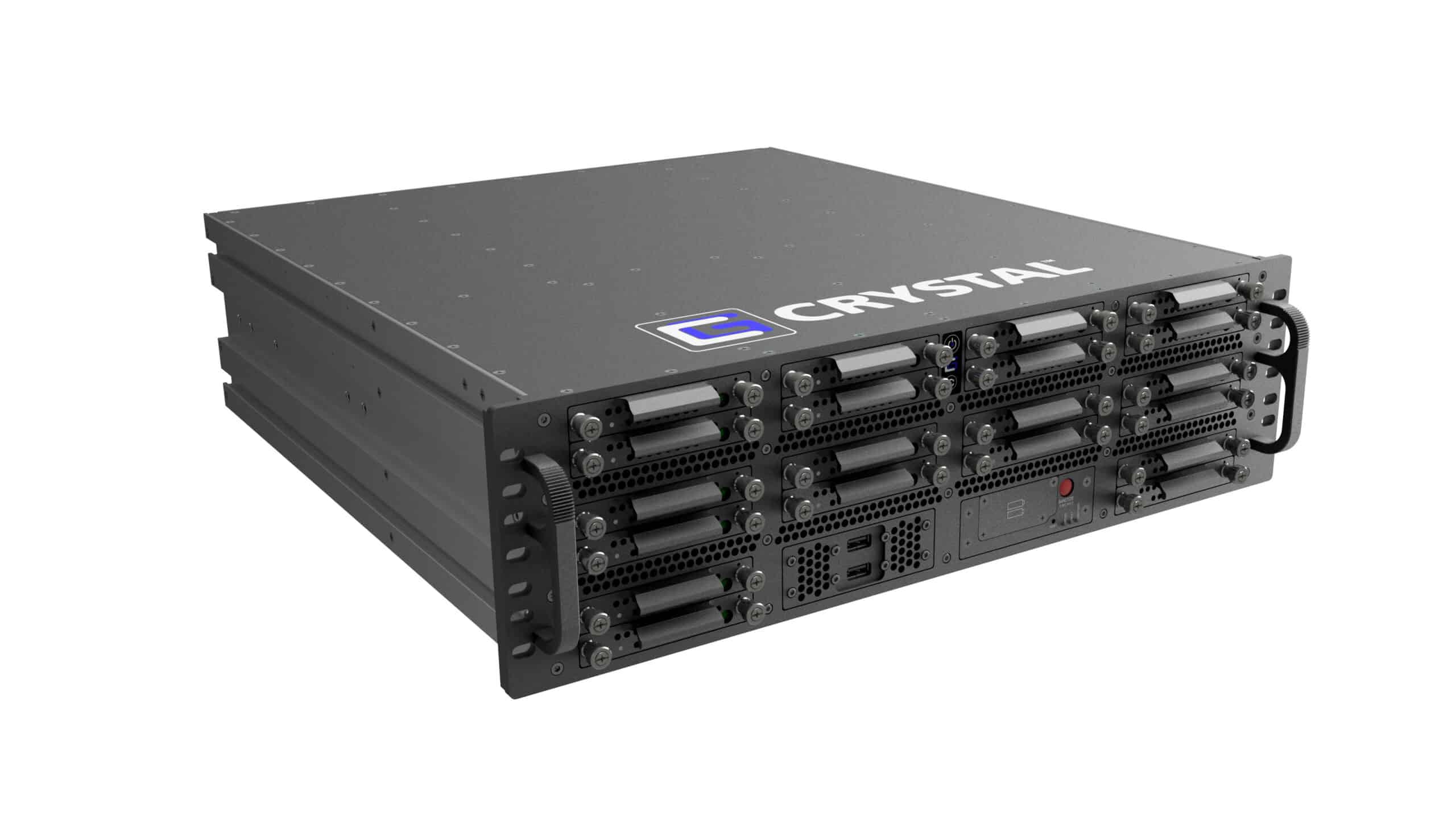

3U: Battle-proven, server-class architecture

Up to 72 cores of the LGA-4189 socket P+ CPU
Up to 4TB of RDIMM DDR4-3200MHz
Up to 7 PCIe Gen4 expansion cards
Up to 2 M.2 slots
12 NVMe or 18 SATA/SAS 2.5” SSD
